Philips fwm 663 2
This is the 30 pages manual for philips fwm 663 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 663 2 (Ocr-read)

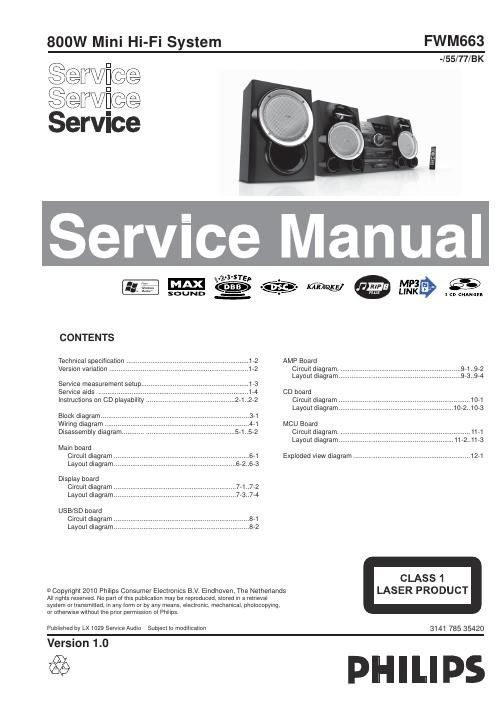

Page 1
Sound- Total Sound Power (RMS): 800 W - Output Power: 9900W PMPO - Sound Enhancement: MAX Sound, Dynamic Bass Boost 3 steps, Incredible Surround, Digital Sound Control 4 modes, Virtual Ambience Control Loudspeakers- Number of Loudspeakers: 3 - Main Speaker: 2" tweeter, Bass Reflex Speaker System, 2 way - Subwoofer driver: 10" woofer - Subwoofer type: Passive Audio Playback- Loader Type: 3 CD Carousel - Number of Discs: 3 - Playback Media: CD, CD-R, CD-RW, MP3-CD, WMA-CD, SD Card, USB flash drive - Disc Playback Modes: 40-Track Programmable, Repeat/one/disk/program, Shuffle Play - USB Direct / SD Modes: Fast Backward/Fast Forward, Play/Pause, Previous/Next, Repeat, Shuffle Audio Recording- Recording Media: USB device, SD/MMC card - USB recording sources: CD, Tuner, Microphone in, Aux, SD Card - SD card recording sources: Aux, CD, Microphone in, Tuner, USB device - USB / SD card recording modes: Delete, Instant record, Progammed tracks, Schedule radio program, Single disc, Single track Tuner/Reception/Transmission- Auto digital tuning - Station presets: 40-TunerBands:FM,MW - Tuner Enhancements: Auto Store, Easy Set (Plug & Play) Connectivity- Audio Connections: RCA Aux in, 3.5mm stereo line in -MP3 link - USB: USB host - Microphone: Dual Microphone sockets - Other connections: FM Antenna, MW Antenna Convenience- Alarms: CD Alarm, USB alarm, Radio Alarm, Sleep timer - Clock: On main display - Display Type: FTD - Karaoke: MIC volume, Echo control Accessories- Remote control: 36-key with 2xAAA batteries - User Manual: Spanish, B-Portuguese - Quick start guide: Spanish, B-Portuguese - Guarantee booklet: Global version - Included accessories: FM/MW Antenna, Batteries for remote control, *Flat pin adaptor - Cables: MP3 line-in cable Dimensions- Set dimensions (W x H x D): 265 x 359 x 353 mm - Main speaker dimensions (W x H x D): 263 x 447 x 360 mm - Subwoofer dimensions (W x H x D): 337 x 491 x 360 mm - Packaging dimensions (W x H x D): 791 x 562 x 741 mm - Weight incl. Packaging: 35.2 kg Power- Power supply: 100-240VAC, 50/60Hz TECHNICAL SPECIFICATION 1 - 2 Type /Versions: Features Board in used:FWM663 Service policy MAIN BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair -- Used /55 /00 /77 8 9 / 3 9 / K B / Feature diffrence RDS VOLTAGE SELECTOR ECO STANDBY - DARK Type /Versions: FWM663 /55 /00 /77 8 9 / 3 9 / K B / VERSION VARIATION C/M AMP BOARD 4 9 / C/M C/M C/M C/MC/M C/MC/M C/M C/MC/M C/MC/M C/M C/M C/M C/M C/M 4 9 / DISPLAY BOARD CD BOARD MCU BOARD USB BOARD SD BOARDC/M C/MC/M
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
