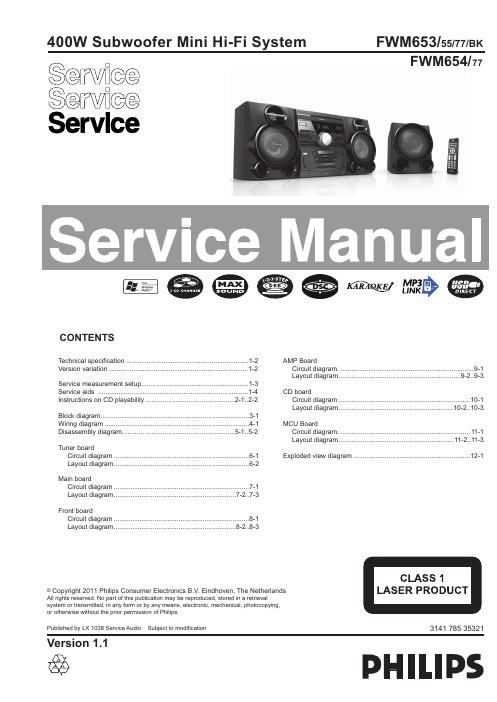

Page 1

400W Subwoofer Mini Hi-F i System FWM653/55/77/BK
D FWM654I77
Service

Service
i

Service
I
Servr e Manua

CONTENTS

Technical specification
Version variation ......

AMP Board
Circuit diagram.
Layout diagram.


Service measurement setup .......................................................... 1-
Service aids .................. .1 CD board
Instructions on CD playability .2-2 Circuit diagram .

Layout diagram. 10-2..10-3


Block diagram

Wiring diagram . MCU Board
Disassembly diagram .5-2 Circuit diagram. ...... 11-1
Layout diagram. 11»2..11-3
Tuner board
Circuit diagram Exploded view diagram ............................................................... 12-1

Layout diagram

Main board
Circuit diagram
Layout diagram

Front board
Circuit diagram
Layout diagram

CLASS 1

©Copyright 2011 Philips Consumer Electronics B.V. Eindhoven, The Netherlands LASER PRODUCT
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or othenivise without the prior permission of Philips.

Published by LX1038 Service Audio Subject to modification 3141 785 35321

Version 1.1

@ PHILIPS

Page 2

TECHNICAL SPECIFICATION

Sound

' Total Sound Power (RMS): 400 W

' Output power (RMS): 4x60W/ch + 160W

' Sound Enhancement: MAX Sound, Dynamic Bass
Boost 3 steps, Incredible Surround, Digital Sound
Control 4 modes. Virtual Ambience Control

' Output Power: 6500W PMPO

Loudspeakers

' Number of Loudspeakers: 3

' Main Speaker: 2" tweeter, Bass Reflex Speaker
System. 525" woofer

' Subwoofer driver: 8" woofer

' Subwoofer type: Passive

Audio Playback

' Loader Type: 3 CD Carousel

' Number of Discs: 3

- Playback Media: CD. CD-R, CD-RW, MP3-CD,
WMA-CD

' Disc Playback Modes: 40-Track Programmable,
Repeadone/disk/program. Shufile Play

' USB Direct Modes: Play/Pause. Stop. Previous/
Next, Fast Backward/Fast Forward, Repeat,
Shuffle, Delete

Tuner/Receptioanransmission

' Auto digital tuning

' Station presets: 40

' Tuner Bands: MW, FM Stereo

' Tuner Enhancements: Auto Store, Easy Set (Plug &
Play)

Connectivity
' Audio Connections: RCA Aux in. 35mm stereo

VERSION VARIATION

line in -MP3 link
. USB: USB host
O Microphone: Dual Microphone sockets
. Other connections: FM Antenna. MW Antenna

Convenience

. Alarms: CD Alarm, USB alarm. Radio Alarm. Sleep
timer

O Clock: On main display

. Display Type: LCD

. Karaoke: MIC volume, Echo control

Accessories

. Remote control: 36-key with 2xAAA batteries

. User Manual: Spanish, B-Portuguese

O Quick start guide: Spanish, B-Portuguese

. Guarantee booklet: Global version

. Included accessories: FM/MW Antenna, Batteries
for remote control, *Flat pin adaptor. AC Power
Cord

. Cables: MP3 line-in cable

Dimensions
. Set dimensions (W x H x D): 269 x 310 x 352 mm
O Subwoofer dimensions (W x H x D):
260 x 310 x 426 mm
. Packaging dimensions (W x H x D):
1085 x 498 x 367 mm
O Weight incl. Packaging: 235 Kg
O Speaker Depth: 292 mm
O Speaker Height: 310 mm
O Speaker Width: 209 mm

Power
O Power supply: 100-240VAC, 50/60Hz

Type IVersions: FWM653

Board in used: Service policy [55 100 /77 /BK 193 /94 198
MAIN BOARD C/M C/M C/M
TUNER BOARD C/M C/M C/M
AMP BOARD C/M ON ON
FRONT BOARD C/M C/M C/M
CD BOARD C/M C/M C/M
MCU BOARD C/M C/M C/M
Type IVersions: FWM653

Features eature diffrence l55 IOU I77 /BK l93 l94 l98

RDS

VOLTAGE SELECTOR

ECO STANDBY - DARK

* TIPS : C -- Component Lever Repair.
M -- Module Lever Repair
1 -- Used
