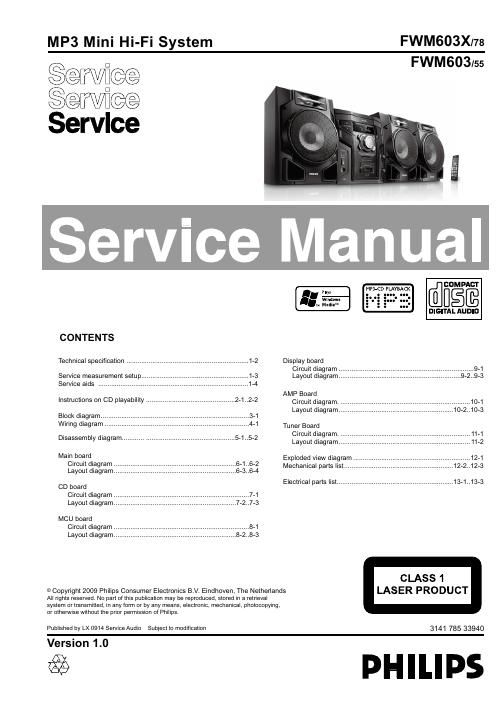

Philips fwm 603 service manual
This is the 34 pages manual for philips fwm 603 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 603 service manual (Ocr-read)
Page 1
Spea kers SpeakerImpedance 6ohm Woofer 2 x 5.25 Tweeter 2x1.75 Dimensions (W x H x D) 230 x 345 x 279mm Weight 3.58kgeach Sub woo fer Speakerimpedance 6ohm Spea kerdriver 8 Outputpower 160W Dimensions (W x H x D) 270x345x396mm Weight 6.28kg General in formation ACpower 110 - 127/220 - 240V,50/60Hz Operationpower consum ption 100W Standby power consum ption <2W USBdirect Version2.0/1.1 Dimensions MainUnit(W x H x D) 269 x 3 11 x 3 66mm Weight (withoutspeakers) 7.31kg Amplifie er Totaloutputpower 600W RMS Frequencyresponse 60 - 16kHz Signal-to-noiseratio >67dBA(IEC) Auxinput 1500mV/200 0mV Disc Lasertype Semiconductor Discdiame ter 12cm/8cm Supportdisc CD-DA,CD-R,CD-RW, MP3-CD,WM A-CD AudioDA C 24Bits / 44.1kHz Totalharmonic distortion <1.5% Frequency response 60Hz-16kHz(44.1kHz) S/Nratio >75dBA Tuner Tuningrange FM: 87.5 - 108MHz; AM:531 - 1602kHz (9KHz); 530 - 1700KHz(10KHz) Tuninggrid 50KHz(FM); 9KHz/10KHz(AM) Numbe r of prese ts 40(FM + AM) FM 75ohmwire AM loo pantenna TECHNICAL SPECIFICATION 1 - 2
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
