Extracted text from philips fwm 593 55 service manual (Ocr-read)

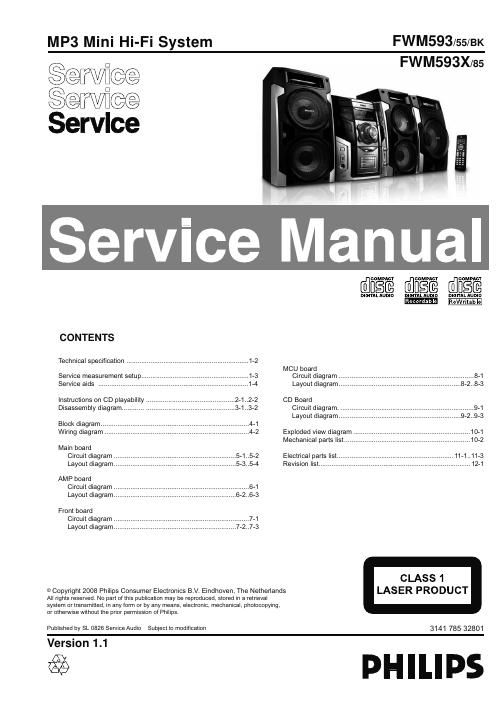

Page 1
AMPLIFIER RMS output power1KHz (Low channel-both channels driven) ................................................................. 100 W per channel 10KHz (High channel-both channels driven) .... .......................................................... 100 W per channel Total output power ........................................... 580 W Signal-to-noise ratio .......................... 67 dB A (IEC) Frequency response .......................... 60 – 16000 Hz Input sensitivity AUX ................................................. 1500mV/2000mV Output Speakers .................................................................... 3 Ω (1) (3 Ω, 1 kHz, 10% THD) CD/MP3-CD PLAYER Number of programmable tracks ......................... 40 Frequency response ............. 60 – 16000 Hz -3dB Signal-to-noise ratio ....................................... 75 dB A Channel separation .......................... 50 dB (1 kHz) Total harmonic distor tion ................................. < 1.5% MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO MP3-CD bit rate ....................................... 32-256 kbps (128 kbps advised) Sampling frequencies ...................... . 32, 44.1, 48 kHz TUNER FM wave range ................................... 87.5 – 108 MHz AM wave range (9 kHz) ............... 531 – 1602 kHz AM wave range (10 kHz) ............. 530 – 1700 kHz Tuning grid ............................................................ 9/10 kHz Number of presets ........................................................ 40 Antenna FM ....................................................................... 75 Ω wire AM .............................................................. Loop antenna USB PLAYER USB ................................................................... 12Mb/s, V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 999 SPEAKERS System 2-way; double por t bass reflex Impedance ........................................................................\ 3 Ω Woofer ................................................................... 2 x 5.25 Tweeter ................................................................... 2 x 1.75 Dimensions (w x h x d) . 225 x 430 x 275 (mm) Weight .......................................................... 4.928 kg each SUBWOOFER Impedance ........................................................................\ 6 Ω Subwoofer driver ............................................................. 8 Subwoofer output power ................................. 180 W Dimensions (w x h x d)274 x 430 x 342.3 (mm) Weight ...................................................................... 6.747 kg GENERAL Material/finish ................................... Polystyrene/Metal AC Power ........................... 110 – 127 / 220 – 240 V; ....................................................... 50/60 Hz, Switchable Power Consumption Active ........................................................................\ 130 W Standby .................................................................. ≤ 20 W Dimensions (w x h x d) .. 265 x 345 x 382 (mm) Weight (without speake rs) ........................... 8.505 kg Specifications and external appearance are subject to change without notice. TECHNICAL SPECIFICATION 1 - 2
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
