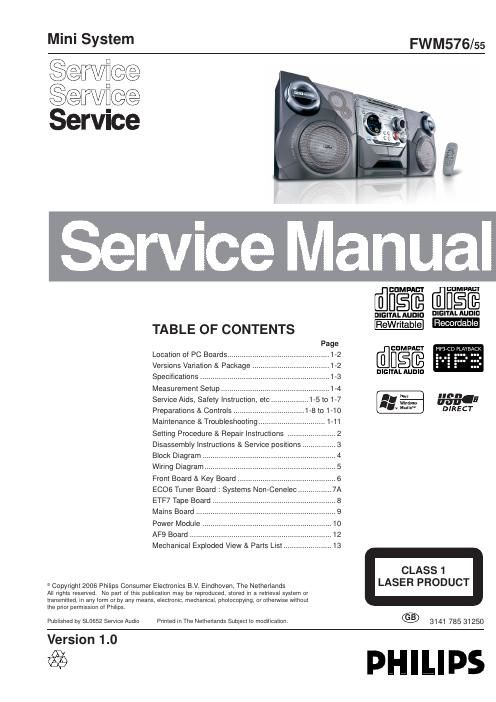

Philips fwm 576 service manual
This is the 47 pages manual for philips fwm 576 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 576 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PCBS /37 Karaoke News RDS Rotary Encoder (volume control) x Jog Shuttle Voltage Selector Aux Input x Digital Output Headphone Socket x Line Output Matrix Surround Loudspeakers Standby - FTD Clock Display ECO Standby - LED Display x ECO6 Tuner board - System Non-Cenelec x ECO6 Tuner board - System Cenelec ETF7 Tape Module: Non-Autoreverse Ferro x VERSION VARIATIONS : Type /Versions: FWM576 Features & Board in used: USB Direct x x /55 xx x x x x x x
Page 2
1-3 SPECIFICATION GENERAL: Mains voltage : 110-127V /37, 220-240V /55 Mains frequency : 60Hz Power consumption : < 1W at ECO Standby< 15W Standby w/Clock on < 165W Active Clock accuracy : < 2 seconds per day Dimension centre unit : 265(W) x 310(H) x 367(D)mm TUNER: FM Tuning range : 87.5-108MHz Grid : 100kHz IF frequency : 10.7MHz ± 20kHz Aerial input : 300 Ω pigtail ant wire /37 Sensitivity at 26dB S/N : < 22dBf Selectivity at 300kHz bandwidth : > 25dB IF rejection : > 75dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5dBf Crosstalk at RF=1mV, dev. 40kHz : > 18dB AM Tuning range : 530-1700kHz Grid : 10kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial 18.1H Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% AMPLIFIER: Output power: 90W per channel RMS Frequency response within -3dB : 125Hz-16kHz Dynamic Bass Boost : DBB OFF, DBB 1, DBB 2, DBB 3 2) Digital Sound Control : Jazz, Rock, Techno, Optimal 2) Headphone output at 32K Ω: 700mV ± 2dB Input sensitivity Aux / CDR : 350mV /900mV CASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to noise ratio Type : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV ±1dB, R out = 100 Ω Signal/Noise ratio (A-weighted) : > 70dBA Distortion at 1kHz : < 0.003% Channel unbalance at 1kHz : ±2dB Crosstalk at 1kHz : > 55dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO MP3-CD Bit Rate : 56-256 kbps MP3-CD Sampling Frequencies : 32 kHz, 44.1kHz, 48kHz Recording Format : ISO 9660 UDF format not supported Low channel (1kHz, 10% THD) : High channel (10kHz, 10% THD) : 90W per channel RMS USB: Measurement done at speaker terminals across 6 Ω load w/ 500mW output and DSC setting in Jazz Mode. Frequency response within ± 3dB : 100Hz - 16kHz Signal/Noise ratio (A-weighted) : > 60dBA Channel crosstalk at 1kHz : > 35dB Channel unbalance at 1kHz : ±3dB :75 Ω coaxial /55
