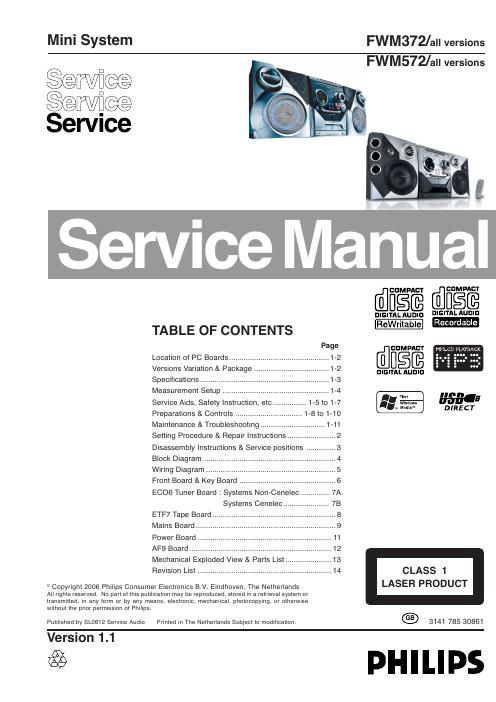

Philips fwm 572 service manual

This is the 58 pages manual for philips fwm 572 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 58

Extracted text from philips fwm 572 service manual (Ocr-read)

Page 1

1-2 LOCATION OF PCBS AF9 BoardCD Key Board Front Board Power Board Mains Bo ard ETF7 Tuner Module Board Cass /05 /12 /55 Karaoke News x RDSx Rotary Encoder (volume control) x x x Jog Shuttle Voltage Selector Aux Input x x xx Digital Output Headphone Socket x x x Line Output Matrix Surround Loudspeakers Standby - FTD Clock Display x x ECO Standby - Darkx x ECO6 Tuner board - System Non-Cenelec xx ECO6 Tuner board - System Cenelecx ETF7 Tape Module: Non-Autoreverse Ferro x x x VERSION VARIATIONS: Type /Versions: FWM372/FWM572 Features & Board in used: x x x xxx USB Direct xxx
