Extracted text from philips fwm 417 2 (Ocr-read)

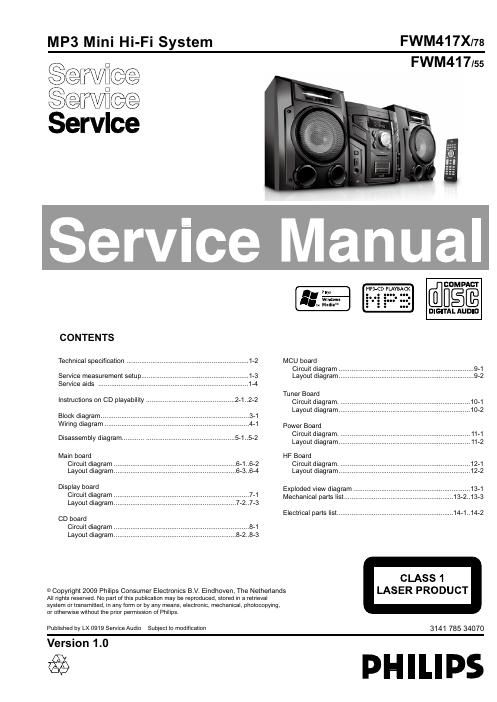

Page 1
Tuner Tuningrange FM: 87.5 - 108MHz; AM:531 - 1602kHz (9KHz);530 - 1700KHz (10KHz) Tuninggrid 100KHz(FM); 9KHz/10KHz(AM) Numbe r of presets 40(FM + AM) FM 75ohmwire AM loo pantenna Spea kers SpeakerImpedance 6ohm Woofer 2 x 5.25 Tweeter 2x1.75 Dimensions (W x H x D) 249 x 344 x 250mm Weight 3.58kgeach General in formation ACpower 110 - 127/220 - 240V, 50/60Hz Operationpower consum ption 180W Standby power consum ption <2W USBdirect Version2.0/1.1 Dimensions Ma inUnit (W x H x D) 265 x 3 10 x 403mm Weight (withoutspeakers) 6.09kg Amplifi er Totaloutputpower 280W RMS Frequencyresponse 60 - 16kHz Signal-to-noiseratio >67dBA(IEC) Auxinput 1500mV/200 0mV Disc Lasertype Semiconductor Discdiame ter 12cm/8cm Supportdisc CD-DA,CD-R, CD-RW,MP3-CD, WMA -CD AudioDA C 24Bits / 44.1kHz Totalharmonic distortion <1.5% Frequencyresponse 60Hz-16kHz(44.1kHz) S/Nratio >75dBA TECHNICAL SPECIFICATION 1 - 2
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
