Philips fwm 399

This is the 82 pages manual for philips fwm 399.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 82
philips fwm 399

Extracted text from philips fwm 399 (Ocr-read)

Page 1

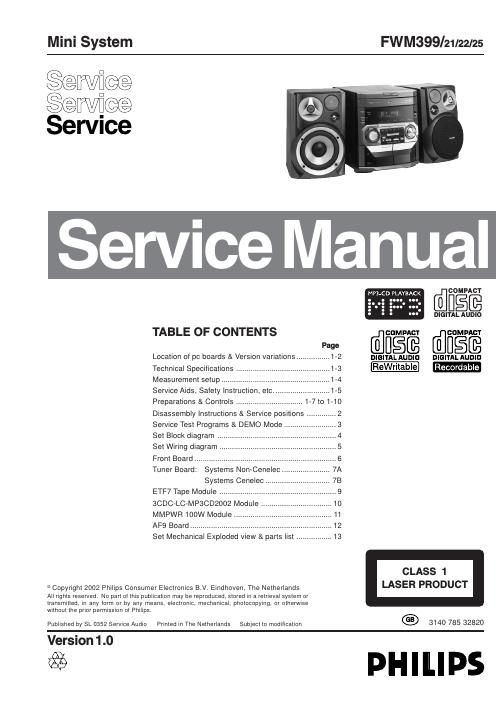

1-2 LOCATION OF PC BOARDS ETF7 BOARD MAINS BOARD LEFT/RIGHT AMPLIFIER & SUPPLY BOARD MAINS SOCKET BOARD TUNER BOARD CD KEY BOARD F R O N T B O A R D K A R A O K E B O A R D AF9 BOARD HEADPHONE BOARD CD B O ARD /21 /22 /25 Karaoke News x RDS x Rotary Encoder (volume control) x x Jog Shuttle x x Voltage Selector x Aux Input x x Digital Output Headphone Socket x x Line Output Matrix Surround Loudspeakers Standby - FTD Clock Display x x ECO Standby - Dark x x ECO6 Tuner board - System Non-Cenelec x ECO6 Tuner board - System Cenelec x ETF7 Tape Module: Non-Autoreverse Ferro x x MMPWR 100W Module: 100W Phase Inverse version x x VERSION VARIATIONS: Type /Versions: FWM399 Features & Board in used: x x x x x x x x x x x

Page 2

1-3 SPECIFICATIONS GENERAL: Mains voltage : 110-127V/220-240V Switchable for /21 230V for /22/25 Mains frequency : 50/60Hz Power consumption : < 1W at ECO Standby (FTD off) < 25W Standby (Demo off) < 175W 1/8 Prated Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 381mm TUNER: FM Tuning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 20kHz Aerial input : 75Ω coaxial Sensitivity at 26dB S/N : < 7µV Selectivity at 600kHz bandwidth : > 25dB IF rejection : > 60dB [> 75dB] Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz 530-1700kHz for /21 Grid : 9kHz 10kHz for /21 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% LW Tuning range : 153-279kHz for /22 Grid : 3kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 7.0mV/M Selectivity at 18kHz bandwidth : > 24dB IF rejection : > 30dB Image rejection : > 30dB Distortion at RF=50mV, m=80% : < 5%AMPLIFIER: Output power (6Ω, 1 kHz, 10% THD) : 2 x 120W ± 1dB Frequency response within -3dB : 60Hz-15kHz Dynamic Bass Boost : DBB OFF, DBB 1, DBB 2, DBB 3 1) Digital Sound Control : Jazz, Rock, Techno, Optimal 1) VEC Control : Cinema, Hall, Concert 1) Incredible Surround : Incr. Surround, IS off 1) Max Sound : Max Sound, Max off 1) Headphone output at 32Ω:15mW ± 2dB 5mW ± 2dB (CD mode) Input sensitivity Aux / CDR : 500mV / 1.0V at 600Ω CASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to noise ratio Ferro : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV ±1dB, Z out = 100Ω Signal/Noise ratio (A-weighted) : > 80dBA Distortion at 1kHz : < 0.003% Channel unbalance at 1kHz :±1dB Channel separation at 1kHz : > 60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO MP3-CD Bit Rate : 56-256 kbps MP3-CD Sampling Frequencies : 32 kHz, 44.1kHz, 48kHz Recording Format : ISO 9660 UDF format not supported [....] Values indicated are strictly for "Cenelec version" only 1) Frequency response in each setting is software controlled.
