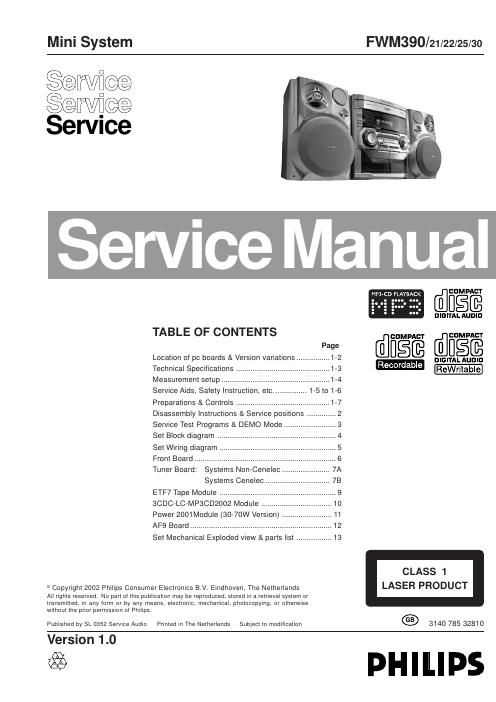

Philips fwm 390 service manual
This is the 82 pages manual for philips fwm 390 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 390 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PC BOARDS /21 /22 /25 /30 Karaoke News x x RDS x x Rotary Encoder (volume control) x x x x Jog Shuttle x x x x V oltage Selector x Aux Input x x x x Digital Output Headphone Socket x x x x Line Output Matrix Surround Loudspeakers Standby - FTD Clock Display x x ECO Standby - Dark x x ECO6 Tuner board - System Non-Cenelec x x ECO6 Tuner board - System Cenelec x x ETF7 Tape Module: Non-Autoreverse Ferro x x x x POWER 2001 Module (30-70W Version): x x x x VERSION VARIATIONS: Type /Versions: FWM390 Features & Board in used: ETF7 BOARD MAINS BOARD LEFT/RIGHT AMPLIFIER & SUPPLY BOARD MAINS SOCKET BOARD TUNER BOARD CD KEY BOARD FRONT BOARD KARAOKE BOARD AF9 BOARD HEADPHONE BOARD CD BOARD
Page 2
1-3 SPECIFICATIONS GENERAL: Mains voltage : 110-127V/220-240V Switchable for /21 230V for /22//25/30 Mains frequency : 50/60Hz Power consumption : < 0.5W at ECO Standby /22/25 < 15W Standby w/Clock on < 80W Active Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 365mm TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 20kHz Aerial input : 75Ω coaxial Sensitivity at 26dB S/N : < 7 µV Selectivity at 600kHz bandwidth : > 25dB IF rejection : > 60dB [80dB] Image rejection : > 25dB [75dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW T uning range : 531-1602kHz 530-1700kHz for /21 Grid : 9kHz 10kHz for /21 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.4mV/M[4.0mv/m] Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% AMPLIFIER: Output power (6 Ω, 1 kHz, 10% THD) : 2 x 40W RMS Frequency response within -3dB : 50Hz-15kHz Dynamic Bass Boost : DBB OFF, DBB 1, DBB 2, DBB 3 2) Digital Sound Control : Jazz, Rock, Techno, Optimal 2) Headphone output at 32 Ω:15mW ± 2dB 5mW ± 2dB (CD mode) Input sensitivity Aux / CDR : 500mV / 1.0V at 600 ΩCASSETTE RECORDER: Number of track : 2 x 2 stereo T ape speed : 4.76 cm/sec ± 2% W ow and flutter : < 0.4% DIN Fast-wind/rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to noise ratio Type : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV ± 1dB, R out = 100Ω Signal/Noise ratio (A-weighted) : > 80dBA Distortion at 1kHz : < 0.003% Channel unbalance at 1kHz : ±1dB Channel separation at 1kHz : > 60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO MP3-CD Bit Rate : 56-256 kbps MP3-CD Sampling Frequencies : 32 kHz, 44.1kHz, 48kHz Recording Format : ISO 9660 UDF format not supported [....] Values indicated are strictly for "Cenelec version" only 1) Default setting is OFF, to switch on please refer page 3-1. 2) Frequency response in each setting is software controlled.
