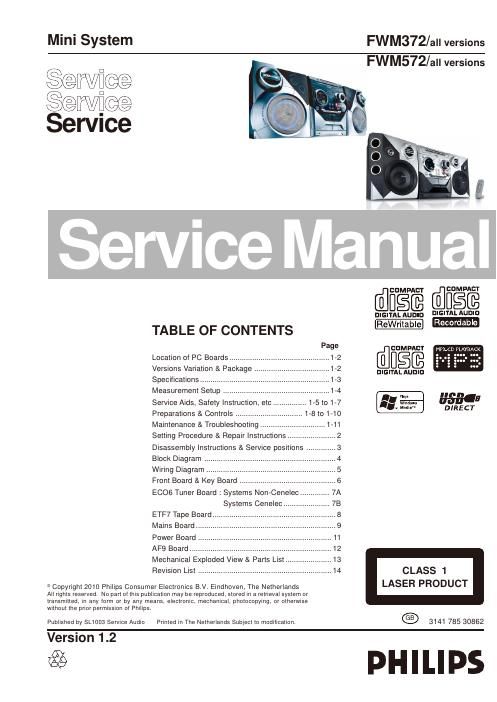

Philips fwm 372 service manual
This is the 58 pages manual for philips fwm 372 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 372 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PCBS AF9 BoardCD Key Board Front Board Power Board Mains Bo ard ETF7 Tuner Module Board Cass VERSION VARIATIONS : Type /Versions: Features Board in used:FWM372/FWM572 Service policy TUNER BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair √ -- Used /05 /12 /55 8 9 / 1 6 / 8 5 / Feature diffrence RDS /NEWS VOLTAGE SELECTOR ECO STANDBY - DARK √ √ √ C M M M M Type /Versions: /05 /12 /55 8 9 / 1 6 / 8 5 / /37 /93 /37 /93 C CC CC CC CC CC √ √ FWM372/FWM572 AF9 BOARD POWER BOARD MAINS BOARD CASS DECK BOARD FRONT BOARD CD KEY BOARD USB JACK BOARD C M M C C C C C
Page 2
1-3 SPECIFICATION GENERAL: Mains voltage : 230V ± 10% /05/12 127V ± 15% / 240V ± 10% /55/98 Mains frequency : 50/60Hz Power consumption : < 1W at ECO Standby /05/12 < 15W Standby w/Clock on < 60W < 110W Active /FWM372 Active /FWM572 Clock accuracy : < 2 seconds per day Dimension centre unit : 265(W) x 310(H) x 367(D)mm TUNER: FM Tuning range : 87.5-108MHz Grid : 100kHz IF frequency : 10.7MHz ± 20kHz Aerial input : Sensitivity at 26dB S/N : < 22dBf Selectivity at 300kHz bandwidth : > 25dB IF rejection : > 75dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5dBf Crosstalk at RF=1mV, dev. 40kHz : > 18dB AM IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial 18.1µH Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% AMPLIFIER: Frequency response within -3dB : 125Hz-16kHz Dynamic Bass Boost : DBB OFF, DBB 1, DBB 2, DBB 3 2) Digital Sound Control : Jazz, Rock, Techno, Optimal 2) Headphone output at 32KΩ:700mV ± 2dB Input sensitivity Aux / CDR : 350mV /900mVCASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to noise ratio Type : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV ±1dB, R out = 100Ω Signal/Noise ratio (A-weighted) : > 70dBA Distortion at 1kHz : < 0.003% Channel unbalance at 1kHz :±2dB Crosstalk at 1kHz : > 55dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO MP3-CD Bit Rate : 56-256 kbps MP3-CD Sampling Frequencies : 32 kHz, 44.1kHz, 48kHz Recording Format : ISO 9660 UDF format not supported USB: Measurement done at speaker terminals across 6Ω load w/ 500mW output and DSC setting in Jazz Mode. Frequency response within ± 3dB : 100Hz - 16kHz Signal/Noise ratio (A-weighted) : > 60dBA Channel crosstalk at 1kHz : > 35dB Channel unbalance at 1kHz :±3dB Output power (6Ω, 1 kHz, 10% THD) : 2 x 60W RMS :2 x 110W RMS /FWM372 /FWM572 Tuning range : 531-1602kHz 530-1700kHz for /55/98 Grid : 9kHz 10kHz for /55/98 75Ω coaxial
