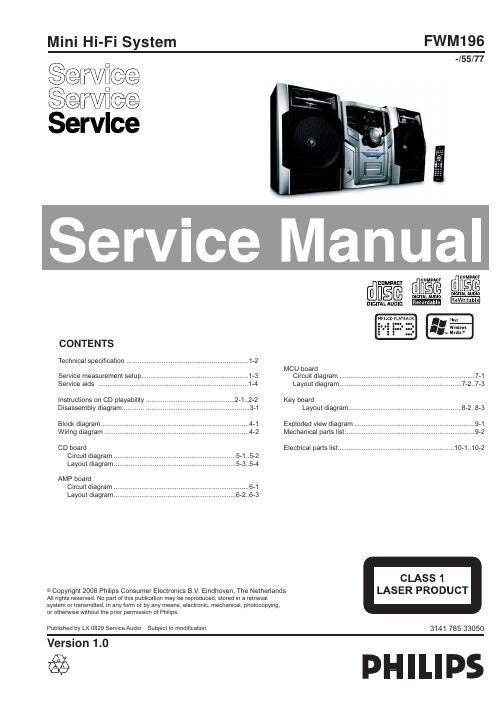

Philips fwm 196 service manual
This is the 23 pages manual for philips fwm 196 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 196 service manual (Ocr-read)
Page 1
SPEAKERS 2-way Bass Reflex System Impedance ........................................................................ 8Ω Woofer ............................................................... 1x100 mm Tweeter ................................................................. 1x50 mm Dimensions (w x h x d).....207 x 310 x 186 (mm) Weight ............................................................ 2.6 kg (each) GENERAL AC Power ........................... 110 – 127 / 220 – 240 V; ....................................................... 50/60 Hz Switchable Power consumption Active ........................................................................\ .. 50 W Set dimensions (w x h x d) .............................................. ...................................................... 220 x 292 x 285 (mm) Weight (main unit) ............................................... 3.83 kg Gross weight (including packaging) ............ 10.4 kg Specifications and external appearance are subject to change without notice. AMPLIFIER 1 KHz (Low channel - both channels driven) ................................................... 20 W per channel (8 Ω) 10 KHz (High channel - both channels driven) ................................................... 20 W per channel (8 Ω) Total output power ................................................. 80 W Signal-to-noise ratio .......................... ≥ 62 dBA (IEC) Frequency response ......... 63 – 16000 Hz, ±3dB CD PLAYER Frequency range .................................. 63 – 16000 Hz Signal-to-noise ratio ............................................ 65 dBA TUNER FM wave range ................................... 87.5 – 108 MHz MW (AM) wave range .................. 530 – 1700 kHz TECHNICAL SPECIFICATION 1 - 2
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
