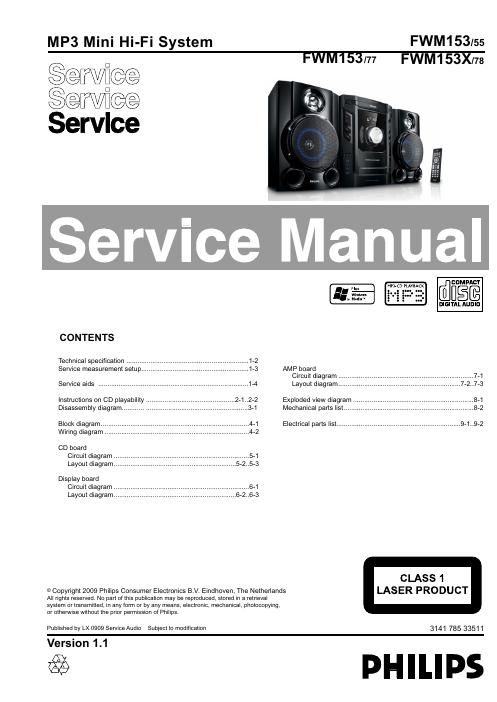

Philips fwm 153 service manual
This is the 22 pages manual for philips fwm 153 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 153 service manual (Ocr-read)
Page 1
Tuner FM TuningRange 87.5 - 108MHz Tuninggrid 50KHz Sensitivity - Mono,26d BS/NRatio - S tereo,46d BS/NRatio <22dBu <45dBu SearchSelectivity <28 dBu TotalHarmoni cDistortion <3% SignaltoNoiseRatio >45dB AM TuningRange 530 - 1700kHz Spea kers SpeakerImpedance 8oh m General in formation ACpower 110 - 127V/220 - 240V,50/60Hz Dimensions - MainUnit(W x H x D) -SpeakerBox(W x H xD) 220 x 2 90 x 27 1mm 189 x 2 90 x 175 mm Weight - WithPacking - MainUnit -SpeakerBox 7.9kg 3.8kg 2 x 1.7kg Suppo rted MP3 disc formats ISO9660 ,Joliet - Maximum titlenumb er:511(depending - on filenamelength) Maximum album numb er:511 - Directorynestingupto a maximum of 8 - levels Amplifi er RatedOutputPower 2X20W RMS FrequencyResponse 63 - 1600 0Hz, ± 3dB SignaltoNoiseRatio >62dB Disc LaserType Semiconductor DiscDiame ter 12cm/8cm SupportDisc CD-DA,CD-R, CD-RW,MP3-CD, WMA -CD AudioDA C 24Bits / 44.1kHz TotalHarmonic Distortion <1% FrequencyResponse 63Hz - 16kHz S/NRatio >65dB A TECHNICAL SPECIFICATION 1 - 2
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
