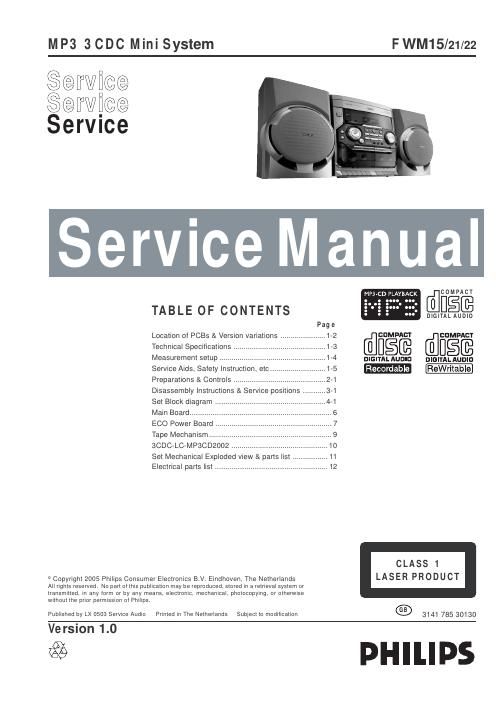

Philips fwm 15 21 22 ver 1 0 service manual
This is the 55 pages manual for philips fwm 15 21 22 ver 1 0 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 15 21 22 ver 1 0 service manual (Ocr-read)
Page 1
1 - 2 ECO POWER BOARD /21 /22 Incredible Surround Karaoke News RDS Rotary Encoder (volume control) Jog Shuttle Vo l t a g e S elector x Au x Input Digital Output Headphone Socket x x Line Output Subwoofer Output Surround Output Matrix Surround Loudspeakers Standby - Clock Display x x Standby - Dark VERSION VARIATIONS: Type /Versions: FWM15 Fe atures & Board in used: MAIN B OARD MAINBO ARD 3C DC BOARD MP3 BOARD ECO Power Standby (Clock Display Off) ECO6 Tuner Board - System Cenelecx x ECO6 Tuner Board - System Non-Cenelecx Only for /22 versions ONE PCB LOCATION OF PRINTED CIRCUIT BOARDS
Page 2
1 - 3 GENERAL: Mains voltage : 230V ± 10% for /22 Mains frequency : 50/60Hz /21 Po we r consumption : ≤ 15 W at Standby /21 ≤ 0.5W at ECO Standby /22 30W Active /22 Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 330mm TUNER: FM Tuning range :87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 20kHz Aerial input : 75!& coaxial Sensitivity at 26dB S/N : < 22∝V Selectivity at 300kHz bandwidth : > 25dB Image rejection,98MHz : > 40dB /21 Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5∝V Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 530-1700kHz /21 Grid : 10kHz /21 IF frequency : 450kHz ± 1kHz Aerial input : Fr ame aerial, 18.1 ∝H Sensitivity at 26dB S/N : < 4.4mV/M Selectivity at 300kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5%AMPLIFIER: Output power 1) :2 x 10W RMS Fr eq uency response within -3dB : 50Hz-15kHz Dynamic Bass Boost : DBB1, DBB2, DBB3, DBB Off 2) Digital Sound Control : Jazz, Techno, Optimal, Rock 2) Headphone output at 32W : : 900mV ± 1dB (max Vol.) CASSETTE RECORDER: Number of track : 2 x 2 stereo Ta p e speed : 4.76 cm/sec +2.5/-1.5 % Wow a nd flutter : < 0.40% DIN Fa st -wind/rewind time C60 : 130 sec Bias system : 75kHz ±5kHz Rec/Pb frequency response within 8dB : 80Hz - 10kHz Signal to noise ratio (A-weighted) : ≥ 48dBA COMPAC T DISC: Measurement done at output conn. of the CDC module. Fr eq uency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV, Z out = 100Ω Signal/Noise ratio (A-weighted) : > 75dBA Distortion at 1kHz : < 0.003% Channel unbalance at 1kHz :±1dB Channel separation at 1kHz : > 60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) 1) 4Ω, 1 kHz, 10% T HD 2) Fr eq uency response in each setting is software controlled. Weight (w/o speakers) : 4.6KgFrequency response : 80 - 12500Hz (8dB) 110-127V/220-240V Switchable for /21 25W Active /21 50Hz /22 ≤ 11 W at Standby /22 > 80dB /22/25 :531-1602kHz /22 :9kHz /22 Impedance headphones 32Ω--1000Ω SPECIFICATIONS
