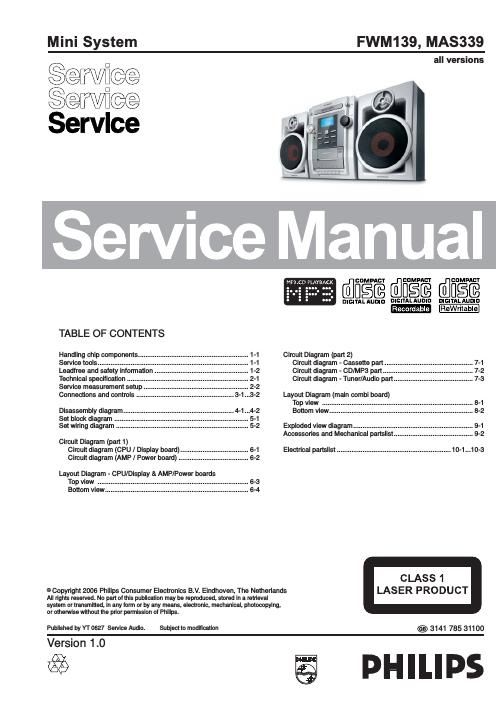

Philips fwm 139 339 service manual
This is the 25 pages manual for philips fwm 139 339 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwm 139 339 service manual (Ocr-read)
Page 2
HANDLING CHIP COMPONENTS
GENERAL DISMOUN'HNG MOUNTING
4522 395 10052
SOLDERING
IRON
ag WELLER
solder up Pr-w
A SOLDER
mllfi-OJmm
mg, A PAIR OF IWEEZERS SOLDERING TIME
\ <3 sac/sldu
CHIP
COMPONENT
VACUUM PISTON avg. A PAIR OF MEEZERS
SOLDERING SOLDERING PRESSURE
lRON IRON
SOLDER WICK
4922 321 40042
SOLDER
00,5- UJJmm
PRESSURE somEmgfi
B :Eéggg
SOLDER SDLDER
COPPER TRACK soLDERlNG
ma mo EXAMPLES
GLUE CLEANING
SULDER WICK C E E
E CORRECT
PRECAUTIONS
SOLDERING
IRON
\< ii CORRECT E: E E: E
COPPER TRACK
a isnooLLEEmNG $J$3ERING
ease
\/ %
SERVICE PACKAGE IP COM NENT
SERVICE TOOLS
TORX T10 screwdriver with shaftlength 150mm ......................................... 4822 395 50423
TORX screwdriver set SBC 163 ............................................................... 4822 295 50145
Audio signal disc SBC 429 ...................................................................... 4822 397 30184
Playability test disc SBC 444 ................................................................... 4822 397 30245
Test disc 5 (disc without errors ) +
Test disc 5A (disc with dropout errors, black spots and fingerprints)
SBC 426/426A ..................................................................... 4822 397 30096
Burn in test disc (65 min. 1kH2 signal at -30 dB level without pause) ..... 4822 397 30155
Universal test cassette Fe SBC 420 ........................................................ 4822 397 30071
AVAILABLE ESD PROTECTION EQUIPMENT
anti-static table mat large 1200x650x1.25mm 4822 466 10953
small 600x650x1.25mm 4822 46610958
anti-static wristband 4822 395 10223
connection box (3 press stud connections, 1M9) 4822 320 11307
extendible cable (2m, 2M9, to connect wristband to connection box) 4822 320 11305
connecting cable (3m, 2M9, to connect table mat to connection box) 4822 320 11306
earth cable (1 M9, to connect any product to mat or to connection box) 4822 320 11308
KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671
wristband tester 4822 344 13999
