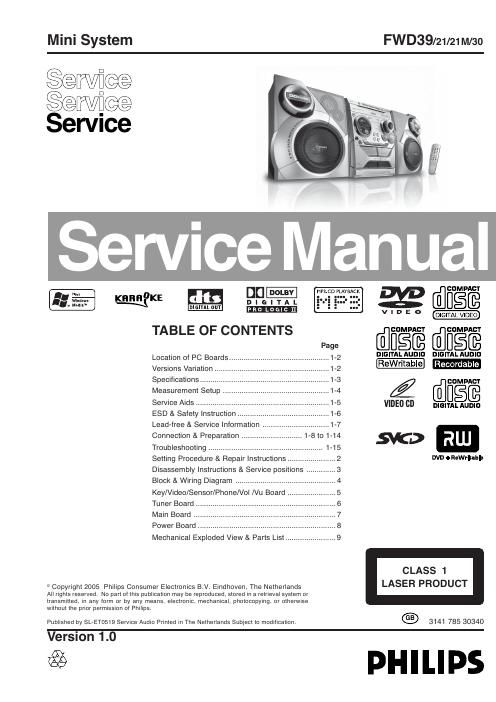

Philips fwd 39 service manual
This is the 51 pages manual for philips fwd 39 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwd 39 service manual (Ocr-read)
Page 1
1-2 /21 /21M 30 Karaoke x x x RDS Rotary Encoder (volume control) x x x Jog Shuttle x x x V oltage Selector x x Aux Input x x x Digital Output x x x Headphone Socket x x x Line Output x x x Standby - FTD Clock Display x x x T uner board - ECO6 System x x x VERSION VARIATIONS: T ype /Versions: FWD39 Features & Board in used: LOCATION OF PC BOARDS POWER BOARD TUNER BOARD 3CDC BOARD MOTOR BOARD CDC KEY BOARD C ONTROL BOARD MAIN BOARD
Page 2
SPECIFICATIONS AMPLIFIER SECTION Output power........................................... 1500 W PMPO Stereo mode ...................................... 50 W + 50 W RMS Frequency Response ...............180 Hz - 14 kHz / ± 3 dB Signal-to-Noise Ratio ...................... > 62dB (A-weighted) Input Sensitivity AUX/TV In ............................................................ 500 mV Output Sensitivity Headphone ....................................... 800 mV – 1100 mV Line Out .............................................. 400 mV – 600 mV TUNER SECTION T uning Range ......... FM 87.5 – 108 MHz ( 50 kHz steps) .................................. MW 531 – 1602 kHz (9 kHz steps) ................................ MW 530 – 1710 kHz (10 kHz steps) 26 dB Quieting Sensitivity ................................FM 20 dB 26 dB Quieting Sensitivity .....................MW 3162 mV/m Image Rejection Radio ...................................... FM 25dB ........................................................................\ MW 28 dB IF Rejection Ratio ............................................. FM 60 dB ........................................................................\ MW 24 dB Signal-to-Noise Ratio ..................................... FM ≥ 55 dB ..................................................................... MW ≥ 35 dB MW Suppression Ratio .....................................FM 30 dB Harmonic Distortion ................................... FM Mono 3 % ................................................................. FM Stereo 3 % ........................................................................\ .... MW 5 % Frequency Response ...................................................... ............................................ FM180 Hz – 10 kHz / ±6 dB Stereo Separation ................................ FM 26 dB (1 kHz) Stereo Threshold ........................................... FM 23.5 dB T APE SECTION Frequency Response Normal tape (type 1) ......................80 – 12500 Hz (8 dB) Signal-to-Noise Ratio Normal tape (type 1) ......................................... ≥ 46 dBA W ow and flutter.............................................. ≤ 0.4% DIN DVD SECTION Laser Type ............................................... Semiconductor Disc Diameter ................................................ 12cm / 8cm V ideo Decoding ................................ MPEG-2 / MPEG-1 V ideo DAC ............................................................ 10 Bits Signal System ............................................... PAL / NTSC V ideo Format .................................................... 4:3 / 16:9 V ideo S/N .............................................. 56 dB (minimum) Composite Video Output ..........................1.0 Vp-p, 75 Ω S-Video Output ................................... Y - 1.0 Vp-p, 75 Ω ........................................................ C - 0.286 Vp-p, 75 Ω Audio DAC .............................................. 24 Bits / 96 kHz Frequency Response ............... 4 Hz - 20 kHz (44.1kHz) ..................................................... 4 Hz - 22 kHz (48kHz) ..................................................... 4 Hz - 44 kHz (96kHz)1-3 Digital Output ................................................................... ................ SPDIF (Sony Philips digital interface) Coaxial PCM ................................................................ IEC 60958 Dolby Digital/DTS ........................IEC 60958, IEC 61937 MAIN UNIT Power Supply Rating .................. 110 - 127 / 220 - 240 V ......................................................... 50/60HZ Switchable Power Consumption Active ....................................................................... 45 W ECO Power Standby ............................................... <1 W Dimensions (W x H x D).............. 265 × 310 × 367 (mm) W eight ................................................................. 5.45 kg SPEAKERS Front speakers System ................................................ 3-way, Bass reflex Impedance ................................................................. 6 Ω Speaker drivers ............................................ 6.5 woofer, ........................................................................\ . 2 tweeter Frequency response ...............................50 Hz – 20 kHz Dimensions (W x H x D).................................................. ..................................................... 260 × 310 × 195 (mm) W eight ......................................................... 3.77 kg/each Specifications and external appearance are subject to change without notice.
