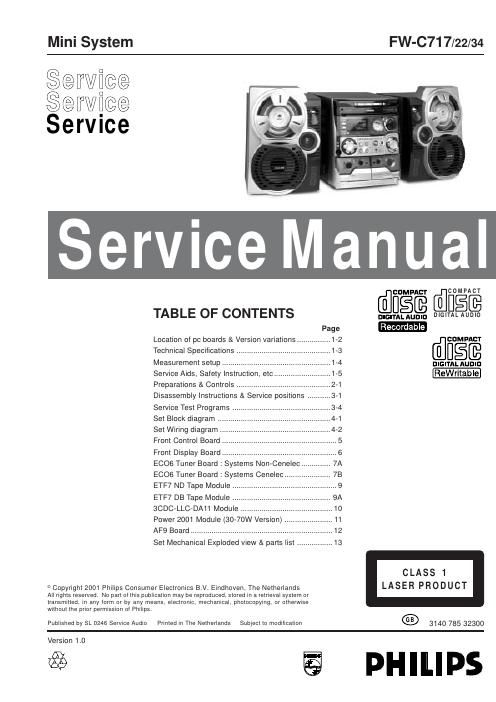

Philips fwc 717 service manual
This is the 96 pages manual for philips fwc 717 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwc 717 service manual (Ocr-read)
Page 1
1-2 LO C AT ION OF PRINTED CIRCUIT BOARDS /22 /34 Au x in /CDR in x x Li ne Out x x Surround Out Su bwoofer Out Digital Out x x Matrix Surround CD Text Dolby B RDS x News x Dolby Pro Logic (DPL) Incredible Surround xx Karaoke Features Vol ta ge Selector ECO Po wer Standby (Clock Display Off) x ECO6 Tuner Board - Systems Non-Cenelec x ECO6 Tuner Board - Systems Cenelec x Center/Surround Channel ETF7 ND/DD/FF - Chapter 9 x x ETF7 DB/DD/FR - Chapter 9A VERSION VARIATION S: Typ e /Versions: FW-C7 17 Fe atures & Board in used: HEADPHONE BOARD E T F 7 B O A R D M A IN S B O A R D POWER BOARD MAINS SOCKET BOARD T U N E R B O A RD KEY-CDC BOARD FRONT DISPLAY BOARD IR-EYE BOARD VU METER BOARD FRONT CONTROL BOARD A F 9 B O A R D CD BOARD x x x x
Page 2
SPECIFICA TIONS GENERAL: Mains voltage :220-230V for /22/34 Mains frequency : 50/60Hz Power consumption : < 1W at ECO Power Standby :100W at Active Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 390mm TUNER: FM Tuning range : 87.5-108MHz 65.81-74MHz for /34 1) Grid : 50kHz (& 30kHz for /34) IF frequency : 10.7MHz ± 25kHz Aerial input : 75Ω coaxial Sensitivity at 26dB S/N : < 7µV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz Grid : 9kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% LW Tuning range : 153-279kHz /22 Grid : 3kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : [< 7.0mV/M] Selectivity at 18kHz bandwidth : [> 24dB] IF rejection : [> 30dB] Image rejection : [> 30dB] Distortion at RF=50mV, m=80% : [< 5%]AMPLIFIER: Output power (6Ω, 1kHz, 10% THD) L & R : 2 x 60W RMS Frequency response within -3dB : 40Hz-20kHz Incredible Surround : ON/OFF WOOX : Level 1, 2, 3 & OFF Digital Sound Control (DSC) : Digital, Rock, Pop, Newage, Classic, Electric Virtual Ambience Control (VAC) : Hall, Concert, Cinema, Disco, Arcade, Cyber Input sensitivity Aux in : 500mV ± 3dB at 1kHz CDR in : 1V ± 3dB at 1kHz Output sensitivity Line out (Left/Right) : 500mV ± 2dB at 22kΩ Digital out : IEC 958, 44.1kHz Headphone output at 32Ω:15mW ± 1dB CASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to Noise Ratio (Type I) : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response : < ±1.5dB for 20Hz-20kHz Output Voltage (in Vrms) : 550mV ± 2dB unloaded Signal to Noise Ratio (A-weighted) : > 80dBA Distortion at 1kHz : < 0.003% Channel Unbalance : < ±1dB Channel Separation (1kHz) : >60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) [....] Values indicated are for "ECO6 Cenelec Board" only. 1) Default setting is OFF, to switch on please refer page 3-4. 1-3
