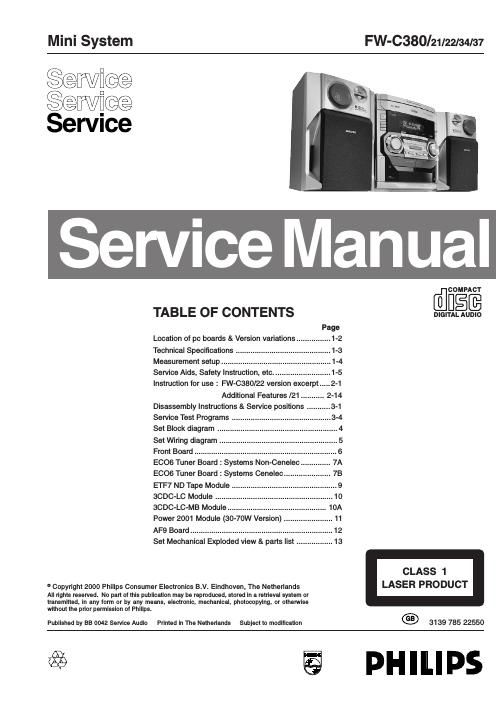

Philips fwc 380 service manual
This is the 105 pages manual for philips fwc 380 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwc 380 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PRINTED CIRCUIT BOARDS ETF7 BOARD MAINS BOARD POWER BOARD MAINS SOCKET BOARD TUNER BOARD CD KEY BOARD FRONT BOARD KARAOKE BOARD AF9 BOARD HEADPHONE BOARD CD BOARD /21 /22 /30 /34 /37 Aux in /CDR inxxxxx Line Out Surround Out Subwoofer Outxxxxx Digital Outxxxxx Matrix Surround CD Text Dolby B RDS x x News x x Dolby Pro Logic (DPL) Incredible Surroundxxxxx Karaoke Features x Voltage Selector x ECO Power Standby (Clock Display Off) x x x ECO6 Tuner Board - Systems Non-Cenelec x x x x ECO6 Tuner Board - Systems Cenelec x Center/Surround Channel Note: 3CDC-LC-MB Module is mechanically the same as 3CDC-LC Module except the schematics, layouts & electrical parts list related to the CDC Board.The CDC Board (recognized by 12NC : 3103 303 34522 printed on the Board) is introduced as an alternative to supplement for the shortage of Servo IC TDA7073A. VERSION VARIATIONS: Type /Versions: FW-C380 Features & Board in used:
Page 2
1-3 SPECIFICA TIONS GENERAL: Mains voltage : 110-127V/220-240V Switchable for /21/21M 120V for /37 220V for /33 220-230V for /22/34 230-240V for /30 Mains frequency : 50/60Hz Power consumption : < 1W at ECO Power Standby :< 15W at Standby :90W at Active Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 390mm TUNER: FM Tuning range : 87.5-108MHz 65.81-74MHz for /34 1) Grid : 50kHz (& 30kHz for /34) 100kHz for /37 IF frequency : 10.7MHz ± 25kHz Aerial input : 75Ω coaxial 75Ω click fit for /37 Sensitivity at 26dB S/N : < 7µV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz 530-1700kHz for /21/21M/37 Grid : 9kHz 10kHz for /21/21M/37 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% LW Tuning range : 153-279kHz /22 Grid : 3kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : [< 7.0mV/M] Selectivity at 18kHz bandwidth : [> 24dB] IF rejection : [> 30dB] Image rejection : [> 30dB] Distortion at RF=50mV, m=80% : [< 5%]AMPLIFIER: Output power (6Ω, 1kHz, 10% THD) L & R : 2 x 60W Output power (6Ω, 60Hz-12.5kHz, 10% THD) /37 L & R : 2 x 45W Frequency response within -3dB : 60Hz-16kHz Digital Sound Control (DSC) : Optimal, Jazz, Rock, Techno Virtual Environment Control (VEC) : Hall, Concert, Cinema Dynamic Bass Boost (DBB) : DBB 1, DBB 2, DBB 3, DBB OFF Incredible Surround : IS ON, IS OFF Input sensitivity Aux in : 500mV ± 3dB at 600Ω CDR in : 1V ± 3dB at 600Ω Mic : {3mV ± 3dB at 600Ω} Output sensitivity Subwoofer out : 1.5V ± 2dB at 22 kΩ Headphone output at 32Ω:15mW ± 2dB Digital (Coax) out : IEC 958, 44.1kHz CASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to Noise Ratio (Type I) : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response : < ±1.5dB for 20Hz-20kHz Output Voltage (in Vrms) : 550mV ± 1dB unloaded Signal to Noise Ratio (A-weighted) : > 80dBA Distortion at 1kHz : < 0.003% Channel Unbalance : < ±1dB Channel Separation (1kHz) : >60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) [....] Values indicated are for "ECO6 Cenelec Board" only. {....} Values for /21/21M only 1) Default setting is OFF, to switch on please refer page 3-4.
