Philips fwc 100 service manual
This is the 80 pages manual for philips fwc 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fwc 100 service manual (Ocr-read)
Page 1

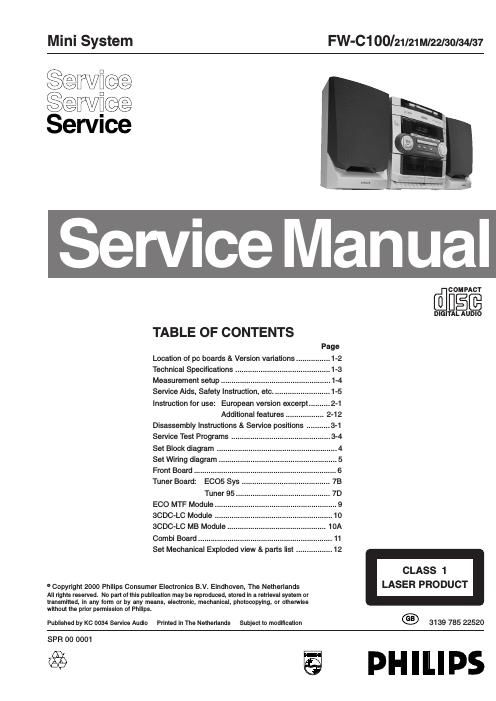

SPR 00 00021-2 MTF BOARD MAINS BOARD TUNER BOARD COMBI BOARD H/P BOARD KARAOKE BOARD FRONT BOARD CD BOARD CD KEY BOARD LOCATION OF PC BOARDS /21 /21M /22 /30 /33 /34 /37 Dolby B Incredible Surround Karaoke News RDS Rotary Encoder (volume control) Jog Shuttle Voltage Selector x x Aux Input x xxxxxx Digital Output Headphone Socket x xxxxxx Line Output Subwoofer Output Surround Output Matrix Surround Loudspeakers Standby - Clock Display x xxxxxx Standby - Dark Tuner board - ECO5 Sys x x x x x x Tuner board - Tuner 95 x Combi board 4W versionxxxxx Combi board 5W version x x VERSION VARIATIONS: Type /Versions: FW-C100 Features & Board in used:
Page 2
