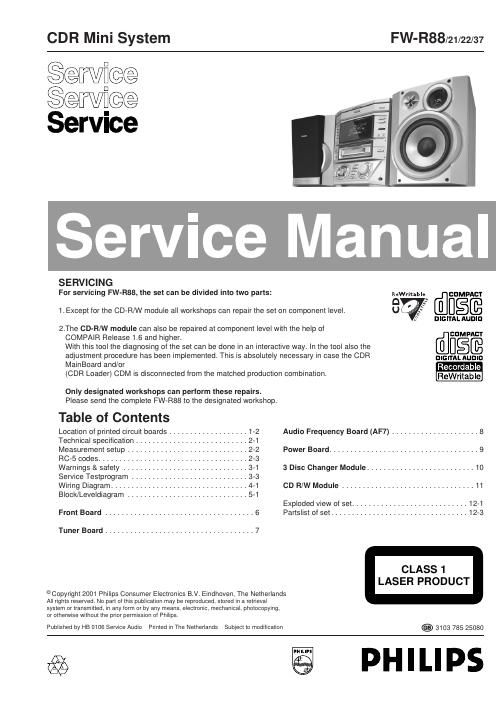

CDR Mini System FW-R88/21/22/37

Service
Service
Servrce

ervice Manua

SERVICING
For servicing FW-Ft88, the set can be divided into two parts: RaeWritzablew COMPACT
1. Except for the CD-R/W module all workshops can repair the set on component level. UL ' 3 @
0° DIGITAL Aunlu
2.The CD-RIW module can also be repaired at component level with the help of summer
COMPAIR Release 1.6 and higher.
With this tool the diagnosing of the set can be done in an interactive way. In the tool also the [flug@
adjustment procedure has been implemented. This is absolutely necessary in case the CDR DIGITAL AUDIO
MainBoard and/or Recordable
(CDR Loader) CDM is disconnected from the matched production combination.
Only designated workshops can perform these repairs.
Please send the complete FW-R88 to the designated workshop.
Table of Contents
Location of printed circuit boards ................... 1-2 Audio Frequency Board (AF7) ..................... 8
Technical specification .............. . 2-1
Measurement setup ............................. 2-2 Power Board .................................... 9
RC-5 codes .................................... 2-3
Warnings & safety ................. . 3-1 3 Disc Changer Module .......................... 10
Service Testprogram ............................ 3-3
Wiring Diagram ................................. 4-1 CD R/W Module ................................ 11
Block/Leveldiagram ............................. 5-1
Exploded view of set ............................ 12-1
Front Board .................................... 6 Partslist of set ................................. 12-3
Tuner Board .................................... 7

CLASS 1

LASER PRODUCT

©Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission 01 Philips.

Published by HB 0106 Service Audio Printed in The Netherlands Subject to modification 3103 785 25080
