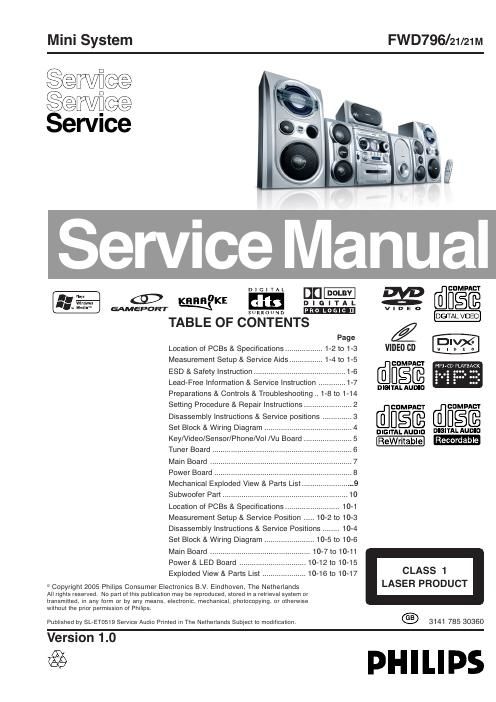

Philips fw d 79621 fwd 79621 m
This is the 66 pages manual for philips fw d 79621 fwd 79621 m.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fw d 79621 fwd 79621 m (Ocr-read)
Page 1
1-2 KARAOKE BOARD TUNER BOARD POWER BOARD LOCATION OF PRINTED CIRCUIT BOARDS /21M Aux in /CDR inx Line Out DIN Out Subwoofer Out Video Out x S-Video Out Digital Out Component Video Out DTS Game Port (Video/Audio L/Audio R) x Dolby Pro Logic (DPL) Incredible Surround Karaoke Features Voltage Selector Standby (FTD Clock Display) x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelecx Center/Surround Channel ETF7 ND/DD/FR x ETF7 DB/DD/FR VERSION VARIATIONS: Type /Versions: FWD796 Features & Board in used: MAIN BOARD KEY-CDC BOARD VFD BOARD VU METER BOARD KEY BOARD x HEADPHONE BOARD GAME PORT BOARD MOTOR2 BOARD MOTOR1 BOARD x x x xx x x x x x/21 x x x x x xx x x x xx x x x x x BOARDSW
Page 2
SPECIFICATIONS AMPLIFIER SECTION Output power..............................................3640 W PMPO Stereo mode (DIN)...........................140 W + 140 W RMS Surround mode (1 kHz).......................................DIN OUT Frequency Response.................180 Hz - 14 kHz / ± 3 dB Signal-to-Noise Ratio......................... > 62dB (A-weighted) AUX/TV In...............................................................500 mV Output Sensitivity Headphone..........................................800 mV – 1100 mV Line Out.................................................400 mV – 600 mV TUNER SECTION Tuning Range........... FM 87.5 – 108 MHz ( 50 kHz steps) .....................................MW 531 – 1602 kHz (9 kHz steps) ..................................MW 530 – 1710 kHz (10 kHz steps) 26 dB Quieting Sensitivity..................................FM 20 dB 26 dB Quieting Sensitivity........................ MW 3162 mV/m Image Rejection Radio........................................FM 25dB ........................................................................... MW 28 dB IF Rejection Ratio...............................................FM 60 dB ........................................................................... MW 24 dB Signal-to-Noise Ratio.......................................FM ≥ 55 dB ........................................................................ MW ≥ 35 dB MW Suppression Ratio.......................................FM 30 dB Harmonic Distortion......................................FM Mono 3 % ....................................................................FM Stereo 3 % .............................................................................. MW 5 % Frequency Response............FM180 Hz – 10 kHz / ±6 dB Stereo Separation...................................FM 26 dB (1 kHz) Stereo Threshold.............................................FM 23.5 dB TAPE SECTION Frequency Response Normal tape (type 1)........................80 – 12500 Hz (8 dB) Signal-to-Noise Ratio Normal tape (type 1) ............................................≥ 46 dBA Wow and flutter................................................ ≤ 0.4% DIN DVD SECTION Laser Type..................................................Semiconductor Disc Diameter..................................................12cm / 8cm Video Decoding...................................MPEG-2 / MPEG-1 Video DAC...............................................................10 Bits Signal System.................................................. PAL / NTSC Video Format.......................................................4:3 / 16:9 Video S/N................................................56 dB (minimum) Composite Video Output............................1.0 Vp-p, 75 Ω S-Video Output..................................... Y - 1.0 Vp-p, 75 Ω .......................................................... C - 0.286 Vp-p, 75 Ω Audio DAC.................................................24 Bits / 96 kHz Frequency Response.................. 4 Hz - 20 kHz (44.1kHz) ........................................................ 4 Hz - 22 kHz (48kHz)1-3 ........................................................ 4 Hz - 44 kHz (96kHz) Digital Output...................................................................... ...................SPDIF (Sony Philips digital interface) Coaxial PCM...................................................................IEC 60958 Dolby Digital/DTS...........................IEC 60958, IEC 61937 MAIN UNIT Power Supply Rating...................... 110 - 127 / 220 - 240V .........................................................50 / 60 Hz Switchable Power Consumption Active...........................................................................85W ECO Power Standby................................................. < 1 W Dimensions (w × h × d).................... 265× 322 × 354 (mm) Weight...................................................................... 5.7 kg SPEAKERS Front speakers System...................................................3-way, Bass reflex Impedance................................................................... 8 Ω Speaker drivers...............................................6.5 woofer, ............................................................................2" tweeter Frequency response..................................50 Hz – 20 kHz Dimensions (w × h × d)................235 × 457 × 246.5 (mm) Weight............................................................5.08 kg/each Specifications and external appearance are subject to change without notice.
