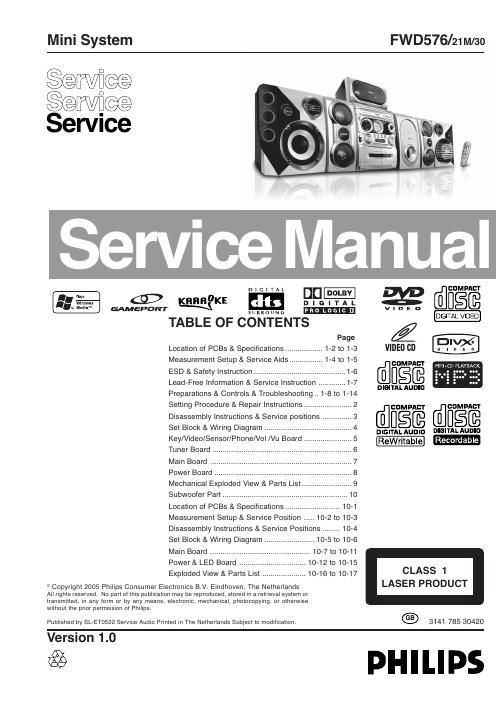

Philips fw d 576 service manual
This is the 66 pages manual for philips fw d 576 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fw d 576 service manual (Ocr-read)
Page 1
1-2 KARAOKE BOARD TUNER BOARD POWER BOARD LOCATION OF PRINTED CIRCUIT BOARDS /21M Aux in /CDR in x Line Out DIN Out Subwoofer Out Video Out x S-Video Out Digital Out Component Video Out DTS Game Port (Video/Audio L/Audio R) x Dolby Pro Logic (DPL) Incredible Surround Karaoke Features V oltage Selector Standby (FTD Clock Display) x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelec x Center/Surround Channel ETF7 ND/DD/FR x ETF7 DB/DD/FR VERSION VARIATIONS: T ype /Versions: FWD576 Features & Board in used: MAIN BOARD KEY-CD C BO ARD VFD BOARD V U METER BO ARD KEY BOARD x HEADPHONE BOARD GAME PORT BOARD MOTOR2 BOARD MOTOR1 BOARD x x x x x x x x x x /30 x x x x x x x x x x x x x x x x BOARD SW
Page 2
SPECIFICATIONS AMPLIFIER SECTION Output power.............................................. 3300 W PMPO Stereo mode (DIN) ...........................100 W + 100 W RMS Surround mode (1 kHz) ....................................... DIN OUT Frequency Response .................180 Hz - 14 kHz / ± 3 dB Signal-to-Noise Ratio ......................... > 62dB (A-weighted) AUX/TV In ............................................................... 500 mV Output Sensitivity Headphone .......................................... 800 mV – 1100 mV Line Out ................................................. 400 mV – 600 mV TUNER SECTION T uning Range ........... FM 87.5 – 108 MHz ( 50 kHz steps) ..................................... MW 531 – 1602 kHz (9 kHz steps) .................................. MW 530 – 1710 kHz (10 kHz steps) 26 dB Quieting Sensitivity ..................................FM 20 dB 26 dB Quieting Sensitivity........................ MW 3162 mV/m Image Rejection Radio ........................................ FM 25dB ........................................................................\ ... MW 28 dB IF Rejection Ratio ............................................... FM 60 dB ........................................................................\ ... MW 24 dB Signal-to-Noise Ratio ....................................... FM ≥ 55 dB ........................................................................\ MW ≥ 35 dB MW Suppression Ratio ....................................... FM 30 dB Harmonic Distortion ...................................... FM Mono 3 % .................................................................... FM Stereo 3 % ........................................................................\ ...... MW 5 % Frequency Response ............FM180 Hz – 10 kHz / ±6 dB Stereo Separation ................................... FM 26 dB (1 kHz) Stereo Threshold ............................................. FM 23.5 dB T APE SECTION Frequency Response Normal tape (type 1) ........................80 – 12500 Hz (8 dB) Signal-to-Noise Ratio Normal tape (type 1) ............................................ ≥ 46 dBA W ow and flutter................................................ ≤ 0.4% DIN DVD SECTION Laser Type .................................................. Semiconductor Disc Diameter .................................................. 12cm / 8cm V ideo Decoding ................................... MPEG-2 / MPEG-1 V ideo DAC ............................................................... 10 Bits Signal System .................................................. PAL / NTSC V ideo Format ....................................................... 4:3 / 16:9 V ideo S/N ................................................ 56 dB (minimum) Composite Video Output ............................1.0 Vp-p, 75 Ω S-Video Output..................................... Y - 1.0 Vp-p, 75 Ω .......................................................... C - 0.286 Vp-p, 75 Ω Audio DAC................................................. 24 Bits / 96 kHz Frequency Response .................. 4 Hz - 20 kHz (44.1kHz) ........................................................ 4 Hz - 22 kHz (48kHz)1-3 ........................................................ 4 Hz - 44 kHz (96kHz) Digital Output ...................................................................... ................... SPDIF (Sony Philips digital interface) Coaxial PCM ................................................................... IEC 60958 Dolby Digital/DTS ...........................IEC 60958, IEC 61937 MAIN UNIT Power Supply Rating ...................... 110 - 127 / 220 - 240V ......................................................... 50 / 60 Hz Switchable Power Consumption Active ........................................................................\ . 1 10W ECO Power Standby ................................................. < 1 W Dimensions (w × h × d) .................... 265 × 322 × 354 (mm) W eight ...................................................................... 5.7 kg SPEAKERS Front speakers System ................................................... 3-way, Bass reflex Impedance ................................................................... 3 Ω Speaker drivers ............................................... 6.5 woofer, ........................................................................\ .... 2" tweeter Frequency response .................................. 50 Hz – 20 kHz Dimensions (w × h × d) ................... 242 × 310 × 240 (mm) W eight ............................................................ 3.72 kg/each Specifications and external appearance are subject to change without notice.
