Philips fw c 83 fwc 85 service manual
This is the 226 pages manual for philips fw c 83 fwc 85 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fw c 83 fwc 85 service manual (Ocr-read)

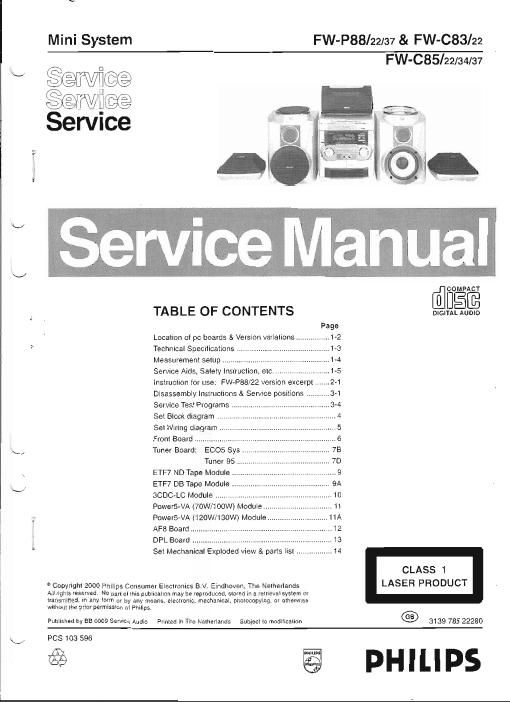

Page 1
v
Mini System FW-P88/22/37 & FW-C83/22
FW-C85/22/a4/37
Sewice
@igé
TABLE OF CONTENTS DIGITAL AUDIO
Page
Locaiion 01 pc boards 8: Version variaiions ............... 1-2
Technical Specifications ,
Measurement selup
Service Aids, Salety Instruction, etci .......................... 1-5
insiruclion for use: FW-P88/22 version excerpt ....... 2-1
Disassembly Instructions & Service positions ....
Service Test Programs
Set Block diagram
Set Wiring diagram ..
Front Board ..............
Tuner Board: E005 Sys .
Tuner 95
ETF7 ND Tape Module
ETF7 DB Tape Module
3CDC-LC Module ......
PowerS-VA (70W/100W) Module .....
PowerSAVA (120W/130W) Module...
AFB Board .....
DPL Board .
Set Mechanical Exploded View & parts list ................. 14
CLASS 1
° Copyright 2000 Philips Consumer Electronics BlV. Eindhowin, '='he \éeiherlands LASER PRODUCT
Al! iighls reserved. No pan cl this publicalion may be reproduced. store-d in a reineve syslem or
lransmiiled, in any lorm or by any means, electronic, mechanical, ptmiccopying er otherw 5e
wiihoui the prior permission oi Philips.
Published by BB 0009 Service Audio Printed in The Netherlands Subjecl lo modilicalion 3139 785 22280
PCS 103 596
me PHILIPS
