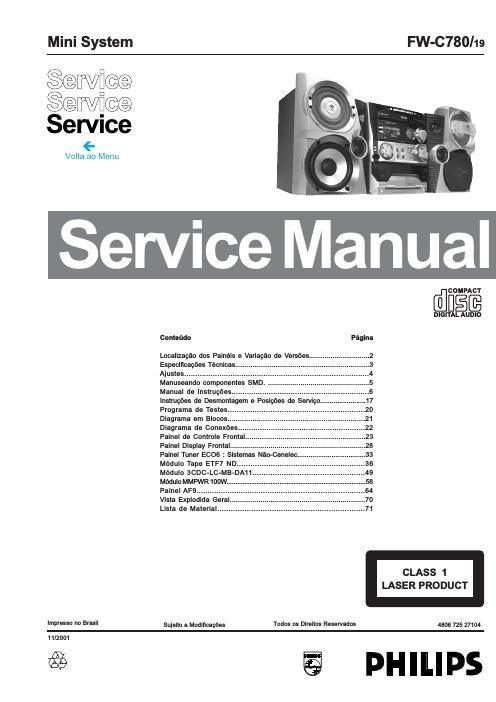

Mini System FW-C780/19
$@W§@@
$@Wn@@
Service
(-
Volta ao Menu
ervice Manual
@EIEIE
DIGITAL AUDIO
Conteiido Pagina
Localizagao dos Painéis e Variagao de Versées ............................... 2
Especificagfies Técnicas
Ajusles .......................
Manuseando componentes SMD
Manual de lnstrugées ............
lnstrugfies de Desmontagem e Posigoes de Servigo
Programa de Testes ........................................
Diagrama em Blocos...
Diagrama de Conexfies.
Painel de Controle Frontal
Painel Display Frontal ........
Painel Tuner ECOG : Sistemas Nae-Cenele
Médulo Tape ETF7 ND .........................
Médulo SCDC-LC-MB-DAH
Module MMPWR100W....
Painel AFQ ..............
Vista Explodida Gera
Lista de Material ................................................................. 71
CLASS 1
LASER PRODUCT
Impresso no Brasil Sujeiio a Modificacées Todos os Direilos Reservados 4806 725 27104
11/2001
