Philips fw c 399 service manual
This is the 76 pages manual for philips fw c 399 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fw c 399 service manual (Ocr-read)
Page 1

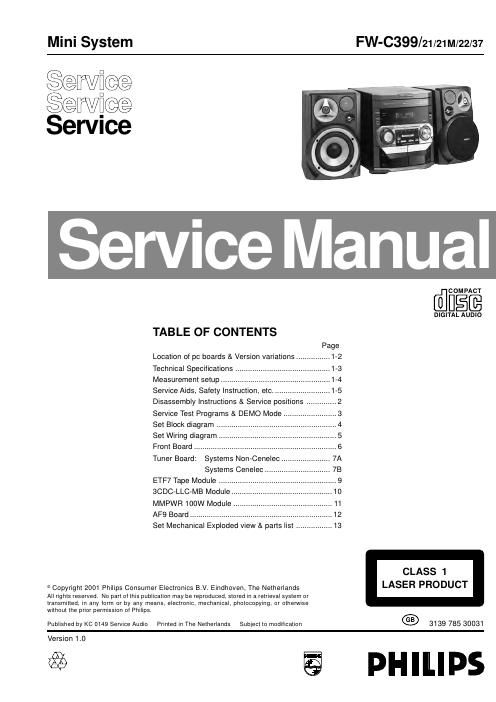

Mini System
Service
Service
Servrce
FW-C399/21/21M/22/37
Service Manual
TABLE OF CONTENTS
Location of pc boards & Version variations
Technical Specifications
Measurement setup .......
Service Aids, Safety Instruction, etc. .............
Disassembly Instructions & Service positions ..
Service Test Programs & DEMO Mode ......................... 3
Set Block diagram ..
Set Wiring diagram .
Front Board ..........................................
Tuner Board: Systems Non-Cenelec.
Systems Cenelec .........
ETF7 Tape Module
3CDC-LLC»MB Module..
MMPWR1OOW Module ............................................... 11
AF9 Board ...................................................
Set Mechanical Exploded view & parts list
9 Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No pan of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by KC 0149 Service Audio
Version 1.0
a
Printed in The Netherlands Subject to modification
COMPACT
DIGITAL AUDIO
CLASS 1
LASER PRODUCT
3139 785 30031
PHILIPS
