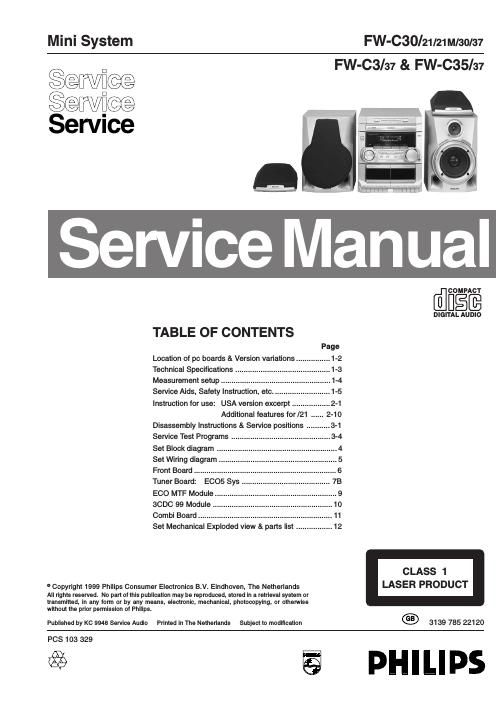

Philips fw c 3 fw c 30 fw c 35 service manual
This is the 72 pages manual for philips fw c 3 fw c 30 fw c 35 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fw c 3 fw c 30 fw c 35 service manual (Ocr-read)
Page 1
1-2 MTF BOARD MAINS BOARD TUNER BOARD COMBI BOARD H/P BOARD KARAOKE BOARD FRONT BOARD CD BOARD CD KEY BOARD LOCATION OF PC BOARDS /21 /21M /30 /37 /37 /37 Dolby B Incredible Surround Karaoke x x News RDS Rotary Encoder (volume control) x x x x x Jog Shuttlexxxx x x Voltage Selector x x Aux Inputxxxx x x Digital Output Headphone Socketxxxx x x Line Output Subwoofer Outputxxxx x x Surround Output Matrix Surround Loudspeakers x x Tuner board - ECO5 Sysxxxx x x Tuner board - Tuner 95 Standby with clock displayxxxx x x VERSION VARIATIONS: Type /Versions: FW-C30 FW-C3 FW-C35 Features & Board in used: PCS 103 330
Page 2
PCS 103 331 1-3 SPECIFICATIONS GENERAL: Mains voltage : 110-127V/220-240V Switchable for /21/21M 120V for /37 220V for /33 220-230V for /22/34 230V for /25 230-240V for /30 Mains frequency : 50/60Hz Power consumption Standby : < 15W Active : < 70W Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 340mm TUNER: FM Tuning range : 87.5-108MHz 65.81-74MHz for /34 1) Grid : 50kHz (& 30kHz for /34) 100kHz for /37 IF frequency : 10.7MHz ± 25kHz Aerial input : 75ohm coaxial 300ohm click fit for /37 Sensitivity at 26dB S/N : < 7µV Selectivity at 600kHz bandwidth : > 25dB [> 30dB] Image rejection : > 25dB [> 60dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz 530-1700kHz for /21/37 Grid : 9kHz 10kHz for /21/37 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB [> 40dB] Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% LW Tuning range : 153-279kHz Grid : 3kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : [< 7.0mV/M] Selectivity at 18kHz bandwidth : [> 30dB] IF rejection : [> 25dB] Image rejection : [> 35dB] Distortion at RF=50mV, m=80% : [< 5%]AMPLIFIER: Output power Left/Right : 2 x 25W FTC 2) @ 6 ohm ± 1dB 2 x 35W RMS 3) @ 6 ohm ± 1dB Surround : 2 x 2W 4) @ 6 ohm ± 1dB Frequency response within ±3dB : 50Hz-15kHz Dynamic Bass Boost : DBB ON, DBB Off 5) Digital Sound Control : Jazz, Techno, Optimal, Rock 5) Input sensitivity Aux-in : 700mV ± 3dB at 600ohm Mic : {2.5mV ± 3dB} at 600ohm Output sensitivity Sub-woofer : 1.5V ± 3dB at 22kohm Headphone : 18mW at 32ohm CASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/rewind time C60 : 130 sec Bias system : 75kHz ± 5kHz Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz Signal to noise ratio (type I) : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV ± 2dB unloaded Signal/Noise ratio (A-weighted) : > 80dBA Distortion at 1kHz : < 0.003% Channel difference at 1kHz : < 1dB Channel separation at 1kHz : > 60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) [....] Values indicated are for "Tuner 95 Board" only {....} Values indicated are for /21/21M only 1)Default setting is OFF, to switch on please refer to page 3-4 2)60Hz - 12,5kHz, 10% THD 3)1kHz, 10% THD 4)Only for FW-C3 & FW-C35 5)Frequency response in each setting is software controlled.
