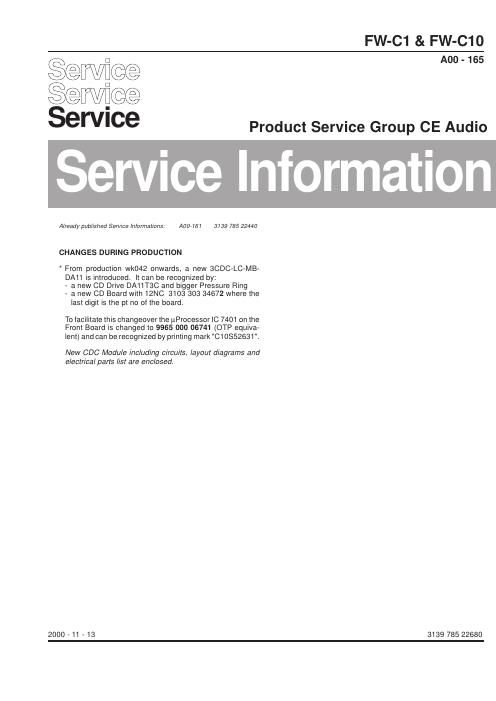

FW-C1 & FW-C10
A00 - 165
$erv§ee
Sew/gee
serce Product Service Group CE Audio
ervice Information
Already published Service Informaticns: A00-161 3139 785 22440
CHANGES DURING PRODUCTION
* From production ka42 onwards, a new SCDC-LC-MB-
DA11 is introduced. It can be recognized by:
- a new CD Drive DA11T3C and bigger Pressure Ring
- a new CD Board with 12NC 3103 303 34672 where the
last digit is the pt no of the board.
To facilitate this changeover the uProcessor IC 7401 on the
Front Board is changed to 9965 000 06741 (OTP equiva-
lent) and can be recognized by printing mark "C1 0852631
New CDC Module including circuits, layout diagrams and
electrical parts list are enclosed.
2000 - 11 - 13 3139 785 22680
