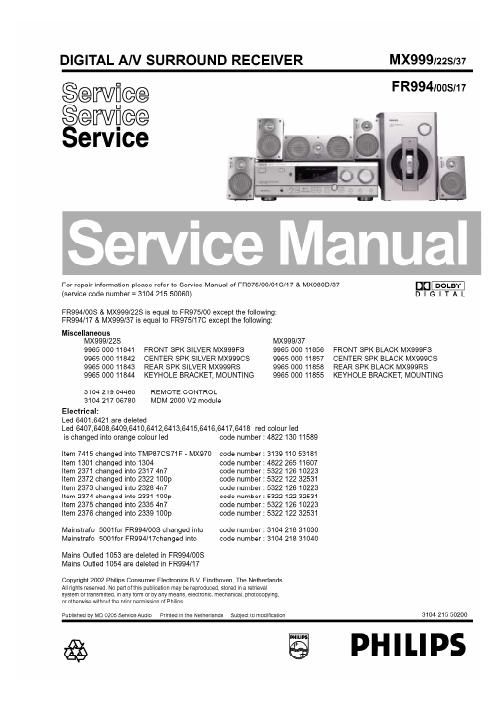

Page 1

DIGITAL AN SURROUND RECEIVER MX999/228/37

S®WE©® FR994/003/17
$ervg©e
SerVIce

For repair information please refer to Service Manual of FR975/00/01C/17 & MX980D/37 D DOLBY
(service code number = 3104 215 50060) D I G | T A L
FR994/OOS & MX999/228 is equal to FR975/00 except the following:
FR994/17 & MX999/37 is equal to FR975/17C except the following:
Miscellaneous

MX999/228 MX999/37

9965 000 11841 FRONT SPK SILVER MX999FS 9965 000 11856 FRONT SPK BLACK MX999FS

9965 000 11842 CENTER SPK SILVER MXQQQCS 9965 000 11857 CENTER SPK BLACK MX999CS

9965 000 11843 REAR SPK SILVER MX999RS 9965 000 11858 REAR SPK BLACK MX999RS

9965 000 11844 KEYHOLE BRACKET, MOUNTING 9965 000 11855 KEYHOLE BRACKET, MOUNTING

3104 219 04460 REMOTE CONTROL
3104 217 06780 MDM 2000 V2 module
Electrical:
Led 6401,6421 are deleted
Led 6407,6408,6409,6410,64126413,6415,6416,6417,6418 red colour led
is changed into orange colour led code number : 4822 130 11589

Item 7415 changed into TMP87CS71 F - MX970 code number: 3139 110 53181

Item 1301 changed into 1304 code number: 4822 265 11607
Item 2371 changed into 2317 4n7 code number : 5322 126 10223
Item 2372 changed into 2322 100p code number : 5322 122 32531
Item 2373 changed into 2328 4n7 code number : 5322 126 10223
Item 2374 changed into 2331 100p code number : 5322 122 32531
Item 2375 changed into 2335 4n7 code number : 5322 126 10223
Item 2376 changed into 2339 100p code number : 5322 122 32531

Mainstrafo 5001for FR994IOOS changed into code number : 3104 218 31030
Mainstrafo 5001for FR994/17changed into code number : 3104 218 31040

Mains Outled 1053 are deleted in FR994IOOS
Mains Outled 1054 are deleted in FR994/17

Copyright 2002 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
Ali rights resewed. No part ofthis publication may be reproduced: stored in a retrieval
system ortransmltted: In any term or by any means, electronic, mechanlcai, photocopying.
or otherwise without the prior permission of Philips.

Pubiished by MD 0205 Servlce Audlo Prlnted in the Neiheriarids Subject ID delI'IcatiDri 3104 215 50200

a PHILIPS

Page 2

1-1

Mechanical: the following items are changed into:

Item Code number Description

200 3104 217 53350 FRONT ASSY FR994/OOS
200 3104 217 53370 FRONT ASSY FR994I17
201 3141 017 74420 CAP END LEFT FR994/OOS
201 3141 014 24480 CAP END LEFT FR994I17

202 3141 017 74430 CAP END RIGHT FR994/OOS
202 3141 014 24490 CAP END RIGHT FR994I17
203 3141 017 74440 BUTTONS SURR. FR994/OOS
203 3141 017 74280 BUTTONS SURR. FR994I17
205 3141 017 74450 BUTTONS TUNER FR994/OOS

205 3141 017 74290 BUTTONS TUNER FR994I17
206 3141 017 74460 BUTTONS MENU FR994/OOS
206 3141 017 74300 BUTTONS MENU FR994I17
207 3141 017 74600 BUTTONS BASS FR994/OOS
207 3141 017 74580 BUTTONS BASS FR994I17

208 3141 017 74480 BUTTONS EASY LINK FR994/OOS
208 3141 017 74320 BUTTONS EASY LINK FR994I17
209 3141 017 75200 RING SURR. FR994/00S

209 3141 014 24660 RING SURR. FR994I17

210 3141 014 24200 LIGHT GUIDE VIRTUAL/HALL

211 3141 014 24210 LIGHT GUIDE SELECTOR

212 3141 014 24290 LENS IR FR994/OOS

212 3141 014 24650 LENS IR FR994I17

213 3141 017 74490 RING KNOB VOLUME FR994/00S
213 3141 014 24630 RING KNOB VOLUME FR994I17

214 3141 017 74500 RING KNOB SOURCE SEL.FR994/OOS
214 3141 014 24640 RING KNOB SOURCE SEL. FR994I17
215 3141 017 74350 WINDOW DISPLAYASSY FR994/005
215 3141 017 74900 WINDOW DISPLAYASSY FR994I17
222 3141 017 74520 KNOB VOLUME FR994/OOS

222 3141 017 74360 KNOB VOLUME FR994I17

223 3141 017 74530 KNOB SOURCE SEL. FR994/008
223 3141 017 74370 KNOB SOURCE SEL. FR994I17
224 3141 017 74540 KNOB MENU NAV FR994/OOS
224 3141 017 74380 KNOB MENU NAV FR994I17

228 3139 247 50570 LEG SILVER

230 3139 247 50560 LEG BLACK

282 4822 535 10638 POWER ROD

283 3141 017 74550 POWER CAP FR994/00S
283 3141 017 74390 POWER CAP FR994I17

287 3104 211 29730 COVER PLATE SILVER FR994/OOS
287 4822 442 01817 COVER PLATE BLACK FR994I17
