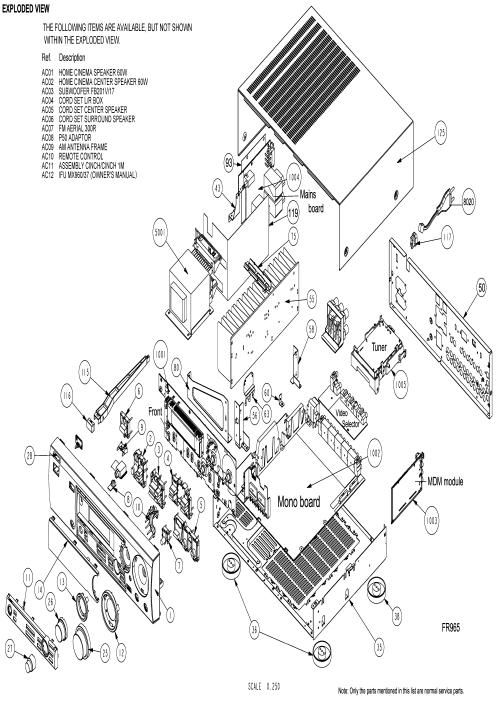

EXPLODED VIEW
THE FOLLOWING ITEMS ARE AVAILABLE, BUT NOT SHOWN
WITHIN THE EXPLODED VIEW.
Ref. Description
ACOI HOME CINEMA SPEAKER 60W
ACOZ HOME CINEMA CENTER SPEAKER 60W
AC03 SUBWOOFER FBZOIV/IT
AC04 CORD SET L/R BOX
ACOS CORD SET CENTER SPEAKER
ACDB CORD SET SURROUND SPEAKER
ACOT FM AERIAL 300R
ACOB P50 ADAPTOR
AC09 AM ANTENNA FRAME
ACID REMOTE CONTROL
ACII ASSEMBLY CINCHICINCH 1M
ACIZ lFU MX960I37 (OWNER'S MANUAL)
Note: ON the parts mentioned in Ms list are normaI servIce parts.
Page 2
GENERAL INFORMATION
Manual 1962 Covering the FR963DHT (FR963/17), FR965DHT
(FR965/17), MX955DHT (MX9550/37), MX960DHT (MX9600/37),
and MX97ODHT (MX970D/37) Digital AN Surround Receivers
Display Product View
SYSTEM INFORMATION
Receiver Front speaker Center Box Surround Box Subwoofer
MX 960D/37 includes :
FR965/17 2 x Home Cinema Home Cinema Center 2 x Home Cinema FB201V/17
Speaker 60W Speaker 50W Speaker 60W
MX 955D/37 includes :
FR965/17 2 x Home Cinema Home Cinema Center 2 x Home Cinema SW090/17
9965 000 1 1850
9965 000 11852
9965 000 11854
Speaker 60W Speaker 50W Speaker 60W 3139 118 78670
MX 970D/37 includes :
FR963/17 MX970FS/17 MX97OCS/17 MX970RS/17 FB201V/17
Location Of Printed Circuit Boards
|Disp|ay Circuit Board Location Guidel
Specifications
Display System Specifications
Service Tools
Audio Signals Test Disc 1 .................... 4822 397 30184
AVAILABLE ESD PROTECTION EQUIPMENT :
Anti-static table mat large 1200x650x1.25mm
4822 466 10953
Small 600x650x1.25mm
4822 466 10958
Anti»static wristband
4822 395 10223
Connection box (3 press stud connections, 1M )
4822 320 1 1307
