Philips fr 310 service manual
This is the 24 pages manual for philips fr 310 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

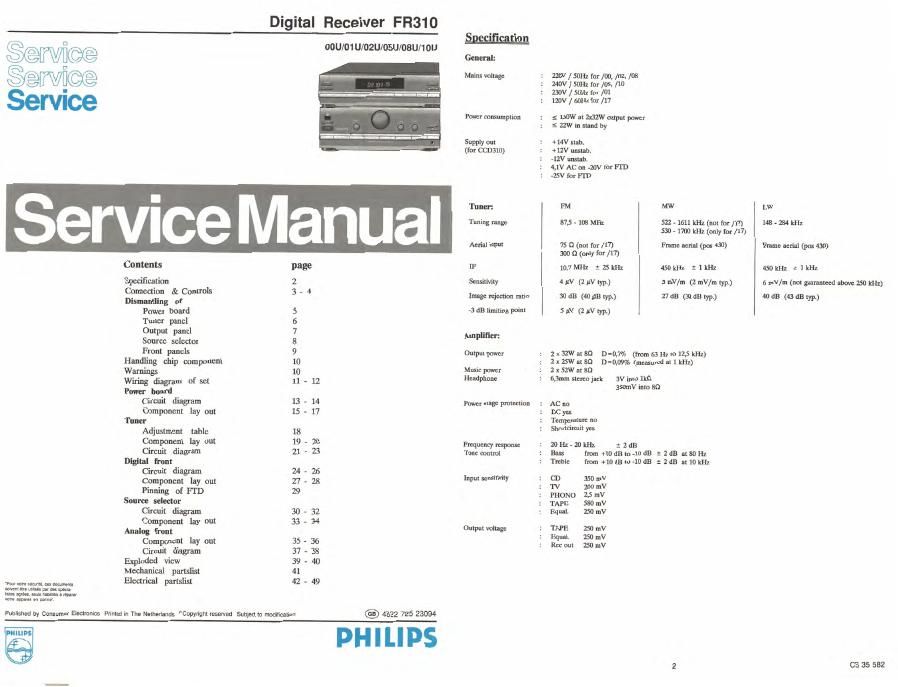

Extracted text from philips fr 310 service manual (Ocr-read)
Page 2
Connections & Controls
1) Power ON/OFF
2) Stand by
3) IR-eye
4) Balance pot
5) Volume pot
Indicator LED
6) Auto Memory
7) Wave band
8) Auto scan
9) F'I'D
10) Preset UP/DOWN
11) Mono/Stereo
CS 35 583
1271
1463
6441
3525
3526
6001
1462
1464
1466
1451
1468/1471
1469
12) Frequ. UP/DOWN
13) Memory OPEN/CLOSE
14) Bass/Treble
15) Surround
16) Bass expansion (D133)
17) Headphone
18) Source selector
PHONO
TUNER
CD
TAPE
TV
1461/1465
1467
3511/3512
1501
1502
1400
1419
1415
1416
1417
1418
A ) Speaker terminal
13 ) Tape IN/OUT
C ) FM aerial 750
D) AM frame aerial
E) PHONO
F ) TV
G) Rec out
.4 -.a , ,.
1272
1554
1 101
1 102
1551
1551
1553
H) Equalizer IN/OUT 15:
I ) Holes to store equalizer bnages
.l ) Connection to CCD310
K ) Voltage selector (not in all versions)
L ) Easy link 1561
H) RC5 1561
N ) Mains socket 1273
