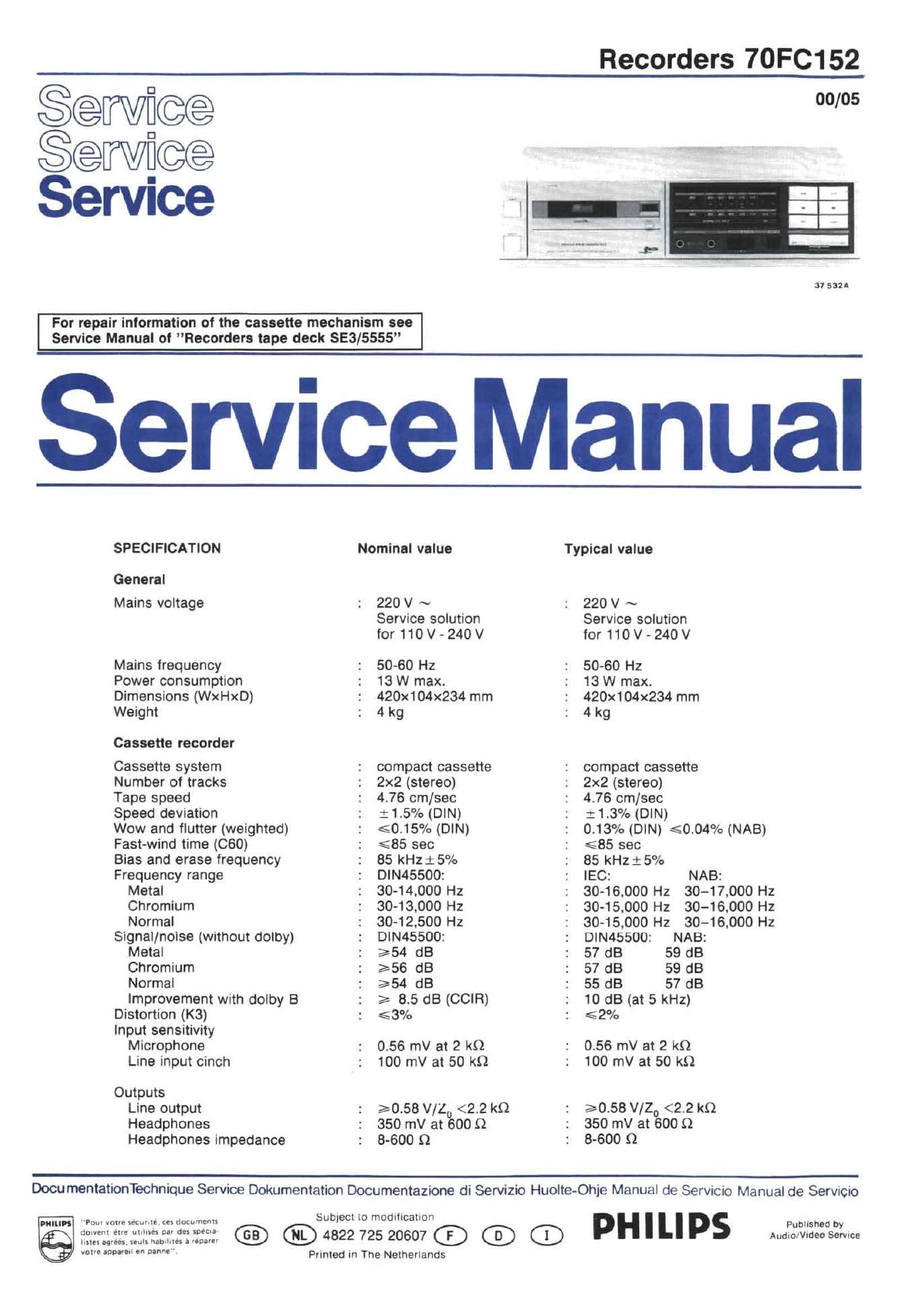

Philips fc 152 service manual
This is the 15 pages manual for philips fc 152 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fc 152 service manual (Ocr-read)
Page 2
Controls and connections
Fig. 1 and 2
1 Mains on/off switch 8K0 12 Pause button
2 Eject button 13 Recording level control
3 Cassette holder 14 Pause indicator
4 Counter 15 Rec. indicator
5 Zero-reset button for counter 16 Dolby NR on/off switch
6 Recording level indicators U1001 17 Tape select buttons
7 Record button SK54 18 Microphone socket
8 Rewind button SK55 19 Headphone socket
9 Stop button SK56 A Line in sockets
10 Play button SK51 8 Line out sockets
11 Wind button SK52 C Mains socket
