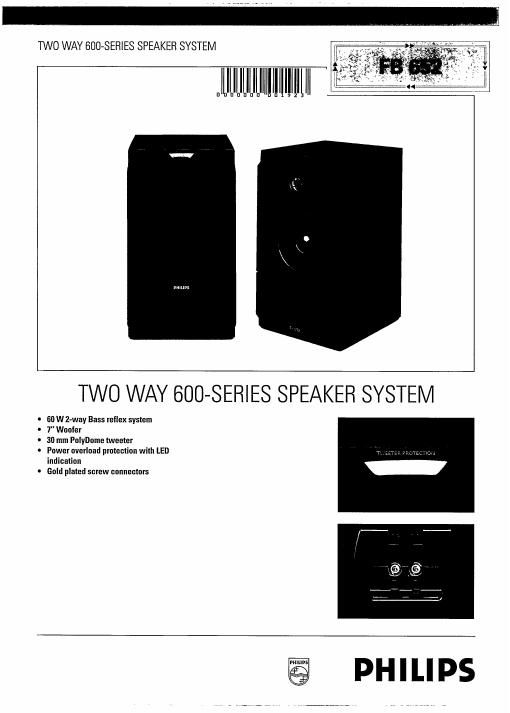

TWO WAY BOO-SERIES SPEAKER SYSTEM

Standard product information

The F3 652 is a powerfull compact model in
the new SOD-series. It is ideal for bookshelf
applications.

OVERLOAD PROTECTION

The overload protection prevents the
possibility of expensive damage being
caused by overload, without compromising
the musical performance in any way.

The protection circuit has two indicators:
one yellow LED indicating that the speaker is
giving its maximum acoustical output and
one red LED indicating that the protection is
active. When the protection circuit becomes
active the tweeter signal will be reduced
significantly. To reset, it is only necessary
to turn down the volume control to a
comfortable listening level.

CLEAN POWERFULL BASS

The new 7" woofer is capable of a long and

linear movement stroke that ensures a very
clean and deep bass.

In addition the bass reflex acoustical system
extends the low frequency response.

The overall effect is that of a much bigger
speaker

Technical specifications

CLEAR HIGH TUNES GENERAL

The dome of this PolyDome tweeter is a 0 Continuous power : 60 W

metal coated Polyester type. The high level. 0 Maximum power : 120 W

high frequency signals ofthe digitally 0 System impedance : 6 Ohm

recorded music of today impose severe 0 Sensitivity : 90 dB (2.83 V / 1 or)

operating conditions up on the tweeter.

This tweeter resolves this problem in two
ways; with the extremely low mass of the
Polyester dome. and by farrofluid cooling.

GOLD-PLATED CONNECTORS

Heavy duty gold-plated screw terminals
provide for the connection of high grade
cables.They also incorporate holes for fast
insert (bananalplugs.

Note:

Like all Philips loudspeakers, the new EDD-series
systems are designed to operate continuously,

without protection, for at least 100 hours at rated {PHD}
continuous power, and at least 10 minutes at maximum
{Fmaxl power. These generous power handling ratings
are a safety factor in themselves.

The overload protection safeguards the EDD-series
systems against any load in excess of them.

- Crossover frequency: 4501] Hz
0 Frequency response : 43 Hz - 20,000 Hz

LOUDSPEAKEB UNITS
0 Woofer : 7"
0 Tweeter : 30 mm PolyDome
ENCLOSURE
- System : 2-way Bass reflex
- Dimensions

(hxwxd) :380x215x250mm
0 Volume

» internal : 12.5 Litre

~ external : 20 Litre
0 Material

- cabinet : 16 mm E1

- baffle : High Impact PS
- Finish : black ash foil
0 Front : detachable cloth
0 Weight : 6.2 Kg
- Connection : screw connectors.

gold plated

Subject to modification without notice
Printed in Holland
3122 321 5228 2
