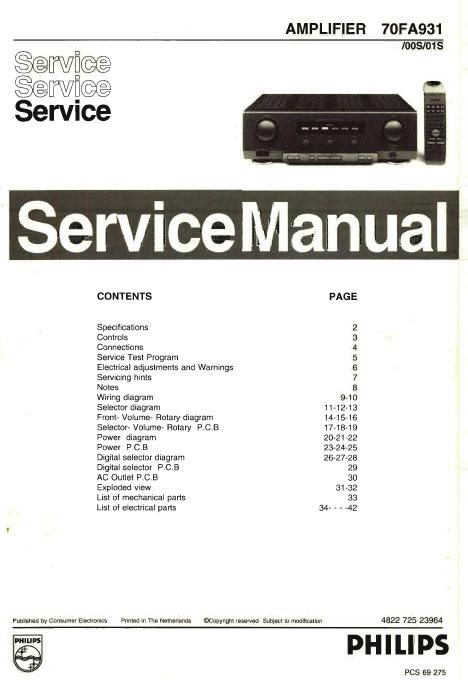

AMPLIFIER 70FA931
I003l01 S
gem/flee
gem/gee
SerVIce
CONTENTS PAGE
Specifications 2
Controls 3
Connections 4
Service Test Program 5
Electrical adjustments and Warnings 6
Servicing hints 7
Notes 8
Wiring diagram 9-10
Selector diagram 11-12-13
Front- Volume- Rotary diagram 14-15-16
Selector- Volume- Rotary P.C.B 17-18-19
Power diagram 20-21-22
Power P.C.B 23-24-25
Digital selector diagram 26-27-28
Digital selector P.C.B 29
AC Outlet P.C.B 30
Exploded view 31-32
List of mechanical parts 33
List of electrical parts 34- - - -42
Published by Consumer Electronics Printed in The Netherlands ©Copyright reserved Subject to modification 4822 725 23964
