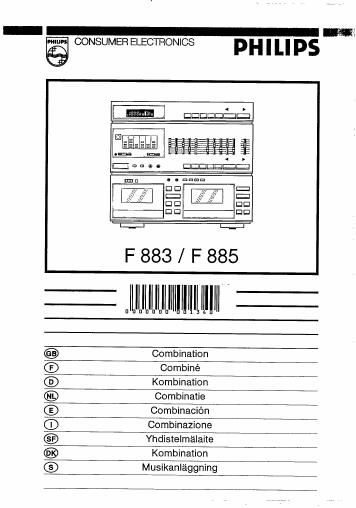

Philips f 883 885 owners manual
This is the 19 pages manual for philips f 883 885 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips f 883 885 owners manual (Ocr-read)
Page 2
English
figures
Guarantee and service
Francais
Figures
Garantie at service aprés-vente
Deutsch
Amtsblatt
Abbildu ngen
Garantieleistung und Service
Nederlands
Figu ren
Garantie en service
Espafiol
Figures
Garantia
Italiano
Figure
Garanzia e servizio
Suomi
Kuvat
Takuu ia huolto
Dansk
Flgurer
Garanti og service
Svenska
Figu rer
Garanti och service
page 2
page 82.83.84.85
pages 86.87.88
page 11
page 82,83.B4,85
pages 86.87.88
Seite 21
Seiten 30.31
Seite 82.83.84.235
Seiten 86,137.88
pagina 31
pagina 82.83.134.85
pagina's 86.87.88
pagina 40
péginas 82.83.84,85
paginas 86.87.88
pagina 48
pagine 82.813.84.85
pagine 86.87.88
sivu 57
sivu 82.831.84.85
sivut 86.87.88
side 65
side 82.83.84.85
side 86.87.88
sida 73
sida 82.83.841.85
sidorna 86.87.88
English
INSTALLATION
o Unpack all parts, remove any protective material
and put separately packed components to one
side.
0 Open the battery compartment of the remote
control unit and insert the batteries (delivered with
the unit). as indicated in Fig. 10.
Installation of the record player
{NOT ON ALL VERSIONS)
0 Fully tighten both record player transit screws @
(Fig. 3) (screw in clockwise direction). This relea-
ses the record player and enables it to rest on its
springs.
When positioning the unit. bear In mind the
[allowing important polnts:
a Every amplifier produces heat when in use. this
must be able to dissipate freely. For this reason do
not cover any vents and make sure that there is
sufficient ventilation room around the unit.
0 Do not place the unit in direct sunlight or close to
radiators. heaters etc. This will prevent overhea-
ting.
0 Do not expose the unit to rain or moisture.
CONNECTIONS
The following points are important when connect-
ing other units to this system:
0 Ensure that the system is not switched on.
0 Make the connections in the given sequence:
first the loudspeakers to the terminals ® and ..
then the aerial and other components to the
sockets © to Q). and finally the mains lead to
terminal ®
0 Check that each connection is correct and make
sure the plugs are properly inserted into the
terminals.
0 Always connect plugs or terminals which are
black or white or marked with L or LEl-r' with
similarly marked terminals in this system.
The same should be done with plugs or terminals
which are red or marked with R or RlGHT.
Fig. 1
® and terminals for loudspeakers
For connecting two or four loudspeakers.
minimum impedance 4 ohms.
