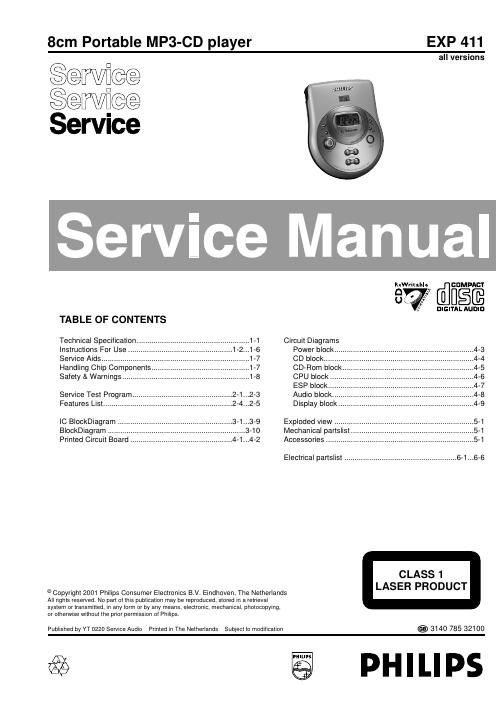

Philips exp 411 service manual
This is the 40 pages manual for philips exp 411 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips exp 411 service manual (Ocr-read)
Page 1
1-1 TECHNICAL SPECIFICATIONS General Dimensions (W x H x D) With boxes.......................................................................................................... 178.0 x 65.0 x 139.0 mm Without boxes ....................................................................................................... 92.0 x 31.5 x 119.5 mm Weight without battery .......................................................................................................................188 g Output (CD-DA and MP3) Output level ........................................................................................................................3 mW +1/-2 dB Frequency response .........................................................................16 Hz – 20 kHz +/- 3.0 dB (16 ohms) S/N ratio (A-weight) ................................................................................................................... >= 100 dB THD (1 kHz, 0dB) ........................................................................................................................... <= 1 % Channel crosstalk (1kHz, 0dB)..................................................................................................... >=30 dB Power supply modes Ext. DC-in socket .................................................................................................. 4.5 V nom. (2.8 – 5.0 V) Battery.................................................................................................................. 1.5 V nom. (0.9 – 1.6 V) Current consumption (Ext. DC = 4.5 V, W/O earphone) PLAY-mode CD ESP off................................................................................................................. 150 mA PLAY-mode CD ESP on................................................................................................................. 150 mA PLAY-mode MP3............................................................................................................................ 230 mA JUMP-mode CD ESP off ............................................................................................................... 300 mA JUMP-mode CD ESP on ............................................................................................................... 300 mA JUMP-mode MP3 .......................................................................................................................... 450 mA Battery life time Disc Battery type ESP on ESP off CD LR6(AA) 6 h 30 m 6 h 30 m MP3 LR6(AA) 3 h 00 m 6 h 00 m
Page 2
1-2 1 23 4 56 7 9 0 ! @ # $8 ^ % 1 1OPEN 2 1. 2. 3CD 5HOLD➟OFF 4 6 !!! PLAY 7VOLUME 2 AA LR6 UM3 QUICK START MISE EN SERVICE RAPIDE CONTROLS (see figure 1) 1VOLE..............adjusts the volume 2LINE OUT/p.........3.5 mm line out to connect –the headphones –this set to the audio input of your stereo equipment 39........................... stops playback, clears a programme and switches the set off 4OFF · RESUME · HOLD OFF .............................switches RESUME and HOLD off RESUME ....................stores the last position played HOLD..........................locks all buttons 5..............................battery compartment 6ESP .......................Electronic Skip Protection prevents music interruptions caused by shocks or vibrations 7DBB ................... ...Dynamic Bass Boost, selects the bass enhancement 8..............................display 9MODE ............... ...selects the different playing possibilities such as SHUFFLE or REPEAT 0PROGRAM ............programs tracks and lets you review the programme !2;.........................switches the set on, starts playback and interrupts playback @+ /− .......................MP3-CD only: selects the next/previous album or skips forward/backward #§/∞..................skips forward/backward and searches forward/backward $OPEN2...............opens the CD lid CONTROLS (see figure 1) %..............................type plate ^4.5V DC ................to connect the external power supply GENERAL INFORMATION Maintenance - Do not touch the lens Aof the set. -Do not expose the set, battery or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). - The lens may cloud over when the set is suddenly moved from cold to warm surroundings. Playing is not possible then. Leave the set in a warm environ- ment until the moisture evaporates. - Active mobile phones in the vicinity of this set may cause malfunctions. -Avoid dropping the set as this may cause damage. - Clean the set with a soft, lint-free cloth. Do not use any cleaning agents as they may have a corrosive effect. - To clean a disc, wipe it in a straight line from the centre towards the edge using a soft, lint-free cloth. Cleaning agents may damage the disc. Environmental information -All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into three mono materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). -Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batter y and old equipment. INSTRUCTIONS FOR USE
