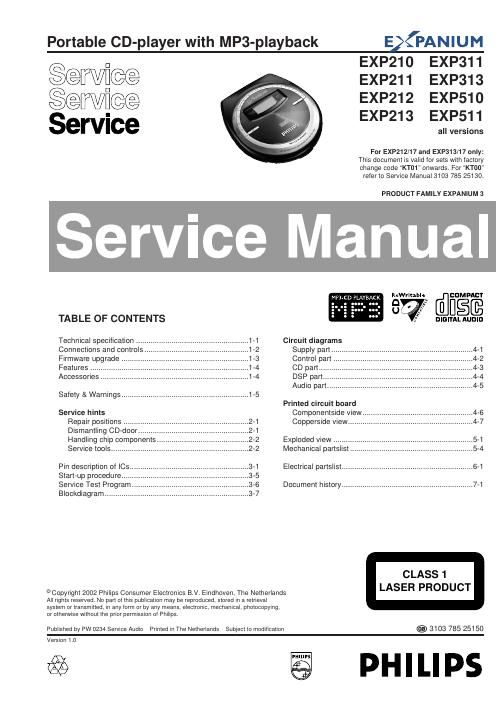

Philips exp 210 service manual
This is the 32 pages manual for philips exp 210 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips exp 210 service manual (Ocr-read)
Page 1
1-1 TECHNICAL SPECIFICATION General Dimensions (WxHxD) : 128x30x137.5mm Weight without batteries : 212g Power supply modes DC-in socket : 2.9..6.5V Primary batteries (2xLR6) : 1.7..3.6V Rechargable batteries (AY3362) : 1.7..3.6V Voltage protection DC-in socket : -14.0..+14.0V Battery lifetime Battery level detection Charge section (not on all versions) Charge current : 250mA ±10% Charge time for 80% AY3362 : 4.0h nom. Charge time for 100% AY3362 : 6.0h nom. Max. charge time (µP controlled) : 7h Temperature protection : 50¡C ±5¡C Current consumption CDDA-playback Current consumption MP3-playback Shock resistance +X/-X direction :³2.5g +Y/-Y direction :³2.5g +Z/-Z direction :³2.0g Headphone out (measured with 16½load, DBB/ESP off) Output power (THD=10%) /17 version only : 2x10mW (+1/-3dB) all other versions : 2x3mW (+1/-3dB) Frequency response (1mW) : 100Hz-20kHz within 6dB S/N ratio (unwght) :³80dB (83dB typ.) S/N ratio (A-wght) :³82dB (85dB typ.) THD+N (1kHz, 1mW) :²1% (0.2% typ.) Channel crosstalk (1kHz, no load) :²-24dB (-44dB typ.) Channel unbalance (-40dB) :²5dB Volume attenuation (1kHz) :³60dB Sound presets Laser Output power : <5mW (3mW typ.) Wavelength : 780nm Measurement setup Use Audio Signal disc SBC429 4822 397 30184 Low pass filter DUT S/N and distortion meter L R i.e. Sennheiser UPM550 with FF-filter Level meter i.e. Sound Technology ST1700B i.e. 4822 395 3020422kHz 13th order T E S E R P D N U O S e s n o p s e r y c n e u q e r F z H k 3 6 z H k 1 z H k 0 1 N O E L B E R TBd 0±B d 2Bd 0±B d 2Bd 5±B d 2 1 S S A BBd 5 +±B d 2Bd 0±B d 2Bd 0±B d 2 2 S S A BBd 9 +±B d 2Bd 0±B d 2Bd 0±B d 2 T N E R R U C N O I T P M U S N O C ) V 5 . 4 ( Y L P P U S N I - C D ) V 5 2 . 2 ( Y L P P U S . T T A B F F O / N O = P S E P L = P S E F F O / N O = P S E P L = P S E e d o m - y a l P.p y t A m 0 4 1.p y t A m 0 0 1.p y t A m 0 7 1.p y t A m 0 2 1 e d o m - p m u J.p y t A m 0 2 3.p y t A m 0 0 4 e d o m - e g r a h C.p y t A m 0 0 3a/ n y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 0 354m. p y t A T N E R R U C N O I T P M U S N O C ) V 5 . 4 ( Y L P P U S N I - C D ) V 5 2 . 2 ( Y L P P U S . T T A B F F O / N O = P S E P L = P S E F F O / N O = P S E P L = P S E e d o m - y a l P.p y t A m 0 4 1.p y t A m 5 1 1.p y t A m 0 7 1.p y t A m 8 3 1 e d o m - p m u J.p y t A m 0 2 2.p y t A m 0 0 3 e d o m - e g r a h C.p y t A m 0 0 3a/ n y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 0 354m. p y t A L E V E L N O I T C E T E D s e i r e t t a b y r a m i r P s e i r e t t a b e l b a g r a h c e R y t p m e y r e t t a BV 8 . 1 V m 0 5 - / 0 0 1 +V 8 . 1 V m 0 5 - / 0 0 1 + 1 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 9 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 7 . 0±V m 0 0 1 2 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 6 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 5 . 0±V m 0 0 1 3 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 3 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 3 . 0±V m 0 0 1 E M I T E F I L Y R E T T A B A D D C F F O / N O = P S E A D D C P L = P S E 3 P M N O = P S E 3 P M P L = P S E s e i r e t t a b y r a m i r P 6 R L x 2³h 7 ) . p y t h 0 1 (³h 1 1 ) . p y t h 5 1 (³h 7 ) . p y t h 0 1 (³h 4 1 ) . p y t h 0 2 ( s e i r e t t a b e l b a g r a h c e R ) h A m 0 0 2 1 ( 2 6 3 3 Y A³h 4 ) . p y t h 5 . 5 (³h 6 ) . p y t h 8 (³h 4 ) . p y t h 5 . 5 (³h 5 . 7 ) . p y t h 1 1 (
Page 2
1-2 CONNECTIONS AND CONTROLS EXP21x 1OPEN 2..........opens the CD lid 2VOL E..........adjusts the volume 39.....................stops playback, clears a programme and switches the set off 42;...................switches the set on, starts playback and interrupts playback 5¤....................skips forward and searches forward 6ESP .................Electronic Skip Protection prevents music interruptions caused by shocks or vibrations 7+ ......................MP3-CD only: selects the next album or skips forward 8........................display 9Ð ......................MP3-CD only: selects the previous album or skips backward 0DBB.................Dynamic Bass Boost, selects the bass enhancement !MODE .............selects playback options such as SHUFFLE and REPEAT @PROGRAM .....programs tracks and lets you review the programme #RESUME.........stores the last position played HOLD ..............locks all buttons OFF .................switches RESUME and HOLD off $°....................skips backward and searches backward %LINE OUT/p....3.5mm line out socket to connect - the headphones - this set to the audio input of your stereo equipment ^4.5V DC ..........to connect the mains adapter (supplied or optionally available) &........................battery compartment *........................type plate (........................belt clip hole EXP31x 1OPEN 2..........opens the CD lid 2VOL E..........adjusts the volume 32;...................switches the set on, starts playback and interrupts playback 4ESP .................Electronic Skip Protection prevents music interruptions caused by shocks or vibrations 5DBB.................Dynamic Bass Boost, selects the bass enhancement 6¤....................skips forward and searches forward 7+ ......................MP3-CD only: selects the next album or skips forward 8DISPLAY .........selects the track and album information 9........................display 0Ð ......................MP3-CD only: selects the previous album or skips backward !°....................skips backward and searches backward @RESUME.........stores the last position played HOLD ..............locks all buttons OFF .................switches RESUME and HOLD off #9.....................stops playback, clears a programme and switches the set off $PROGRAM .....programs tracks and lets you review the programme %MODE .............selects playback options such as SHUFFLE and REPEAT ^LINE OUT/p....3.5mm line out to connect - the headphones - this set to the audio input of your stereo equipment &4.5V DC ..........to connect the mains adapter (supplied or optionally available) *........................battery compartment (........................type plate )........................belt clip hole PR O G RA M OFF·R ESUM E· H O L D LINEOUT/ OPEN VOL. M OD E ESPDBB DISPLAY ALBUM · TITLESEARCH ALBUM · TITLE SEARCH 3 4 57 9 0 @ )1 2 ! # ^ 6 8 $ % & * ( STOP PL AY · PA U S ESEAR CHALBU M ·TITLE SE ARCH A L BU M· TITLE M ODEPROGRAM DBB ESP OFF·R ES UM E· H O L D LINEOUT/ OPEN VOL. 3 4 5 6 7 8 9 0 # 1 2 * ( @ ! $ % ^ &
