Philips dvp 6620 service manual

This is the 5 pages manual for philips dvp 6620 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 5
philips dvp 6620 service manual

Extracted text from philips dvp 6620 service manual (Ocr-read)

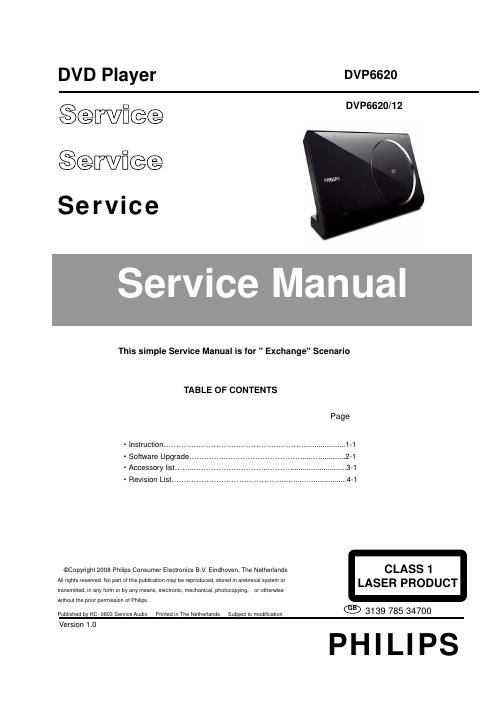

Page 1

How to remove the CD manually from the tray 1. Please do as below instruction in case the tray can not be open: I. Power off the DVD player. II. Please gently move the CD door follow the below arrowhead (Figure1). 1-1 Figure 1

Page 2

Software upgrade Preparation to upgrade software 1) Start the CD Burning software and create a new CD project (Data Disc) with the following setting: Label: DVPXXXX (No need the label name) File Name: DVPXXXX_XX.BIN Power on the set and open the tray, then press <5><5> to check the File Name. Note: It is required capital letter for the File System name 2) Burn the data onto a blank CDR A. Procedure for software upgrade: 1) Power on the set and insert the prepared Upgrade CDR. 2) The set will starts reading disc & response with the following display TV screen: Upgrade File DETECTED Upgrade? Press Play TO START. 3) Press button to confirm, then screen will display : Files coping… UPGRADING… 4) The upgraded disc will automatically out when files coping complete, then take out the disc. 5) About 1 minute later, the trace will automatically close when upgrading complete. B. Read out the software versions to confirm upgrading 1) Power on the set and press button on the remote control. 2) Press<1><3><7><9>button to check the software information. The software version and other information are display on the TV screen as follows: Version XX.XX.XX.XX (Main version) SUB-VER XX.XX.XX.XX (software version of application software) 8032 XX.XX.XX.XX Servo XX.XX.XX.XX (software version of Servo) RISC XX.XX.XX.XX DSP XX.XX.XX.XX Region Code X 2-1 Caution: The set must not be power off during upgrading, Otherwise the Main board will be damaged entirely.
