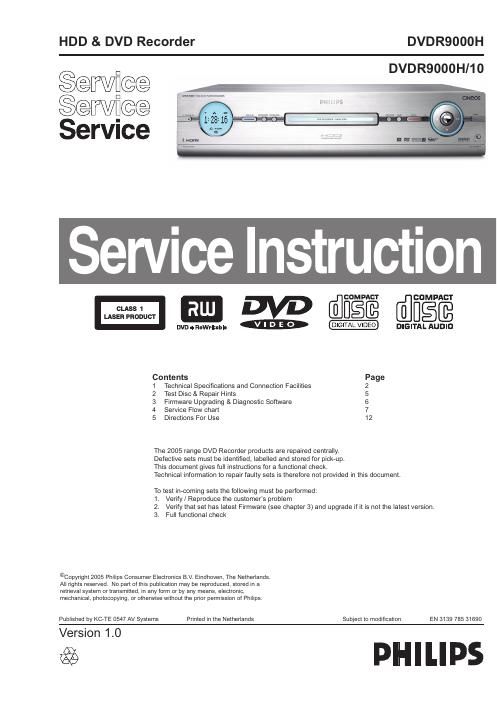

Philips dvdr 9000 h service manual
This is the 14 pages manual for philips dvdr 9000 h service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dvdr 9000 h service manual (Ocr-read)
Page 1
EN 2 3139 785 31690 1. Technical Specifications and Connection Facilities 1. Technical Specifications and Connection Facilities 1.1 Read / Write Speed Type of Disc (Function) Disc Rotation Speed Read Speed CD7X CAV Read Speed DVD4X CAV Write Speed DVD+R/+RW 2.4X ZCAV Write Speed DVD-R/-RW 2X 1.2 General: Mains voltage : 198V – 276V Mains frequency : 47 Hz – 63 Hz Power consumption (record) : < 75 W Standby Power Consumption : 7 W Eco standby : < 3 W 1.3 RF Tuner 1.3.1 RF Tuner (Analogue) 1.3.1.1 System PAL B/G, PAL D/K, SECAM L/L, PAL I 1.3.1.2 RF - Loop Through: Frequency range : 45 MHz – 860 MHz Gain: (ANT IN - ANT OUT) : -6dB to 0dB 1.3.1.3 Receiver: PLL tuning with AFC for optimum reception Frequency range : 45.25 MHz – 857 MHz Sensitivity at 40dB S/N (video unweighted) : ≤ 60dBμV at 75 Ω 1.3.1.4 Video Performance: Channel 25 / 503,25 MHz, Test pattern: PAL BG PHILIPS standard test pattern, RF Level 74dBV, Measured on SCART 1 Frequency response : 0.1 MHz – 4 MHz ± 3dB Group delay (0.1 MHz - 4.4 MHz) : 0 nsec ± 150 nsec 1.3.1.5 Audio Performance: Audio Performance Analogue - HiFi: Frequency response at SCART 1 (L+R) output : 100 Hz – 12 kHz / 0 ± 3dB S/N Ratio (20Hz – 20kHz) unweighted : ≥ 50dB Harmonic distortion (1 kHz, ± 25 kHz deviation) : ≤ 1.5% Audio Performance NICAM: Frequency response at SCART 1 (L+R) output : 40 Hz – 15 kHz / 0 ± 3dB S/N Ratio (20Hz – 20kHz) unweighted : ≥ 60dB Harmonic distortion (1kHz, ± 25 kHz deviation) : ≤ 0.5%1.3.1.6 Tuning Automatic Search Tuning Scanning time without RF signal : 3min. typical Stop level (vision carrier) : ≥ 37dB/μV Maximum tuning error of a recalled program : ± 100 kHz Maximum tuning error (drift) during operation : ± 100 kHz Tuning Principle: Automatic B, G, I, DK and L/L detection Manual selection in STORE mode 1.3.2 RF Tuner (Digtal Terrestial) 1.3.2.1 DVB - T - Tuner Frequency range : 49-861MHz Gain (ANT IN – ANT OUT) : -1 dB to 3 dB Auto Search scanning time (without Antenna input signal) : 40 sec typical 1.3.2.2 DVB-T- Video Performance DVB-T – RF antenna signal IN ; Video performance measured at Rear Cinch Audio Out: - S/N(Unweighted,5MHz-BW limitation, SC trap ON) : ≥ 52dB - Frequency response 0.1 to 4.8 MHz : +1/-5dB - Y/Chroma delay : ≤ 55ns 1.3.2.3 DVB-T- Audio Performance DVB-T – RF antenna signal IN ; Audio performance measured at Rear Cinch Audio Out: - S/N(A-weighted, 22kHz-BW limited) : ≥ 88dB - Frequency response 20Hz to 20kHz : ± 1dB - THD + Noise (at 1 kHz) : ≥ 85dB - THD + noise (ratio) for 16Hz to 20kHz : ≥ 65dB - Channel Separation (at 1kHz) : ≥ 100dB
Page 2
EN 3 3139 785 31 69 0 1. Technical Specifications and Connection Facilities 1.4 Analog Inputs / Outputs 1.4.1 SCART 1 (Connected to TV) Pin Signals: 1 Audio-out R 1.8V RMS 2 Audio-in R 3 Audio-out L 1.8V RMS 4 Audio GND 5 Blue / Chroma GND 6 Audio-in L 7 Blue-out 0.7Vpp ± 0.1V into 75Ω 8 Function switch < 2V = TV > 4.5V / < 7V = asp. Ratio 16:9 DVD > 9.5V / < 12V = asp. Ratio 4:3 DVD 9 Green GND 10 P50 control not use 11 Green out 0.7Vpp ± 0.1V into 75Ω 12 NC 13 Red / Chroma GND 14 Fast switch GND 15 Red-out / 0.7Vpp ± 0.1V into 75Ω Chroma-out 300mVpp ± 3dB 16 Fast switch RGB / CVBS or Y out < 0.4V into 75Ω = CVBS >1V / < 3V into 75Ω = RGB 17 Y/CVBS-out GND 18 CVBS-in GND 19 CVBS-out / Y-out 1Vpp ± 0.1V into 75Ω 20 CVBS-in 21 Shield 1.4.2 SCART 2 (Connected to AUX) Pin Signals: 1 Audio-out R 1.8V RMS 2 Audio-in R 3 Audio-out L 1.8V RMS 4 Audio GND 5 Blue / Chroma GND 6 Audio-in L 7 Blue-in 8 Function switch 9 Green GND 10 NC 11 Green-in 12 NC 13 Red / Chroma GND 14 Fast switch GND 15 Red-in / Chroma-in 16 Fast switch RGB / CVBS or Y in 17 CVBS-out GND 18 Y / CVBS-in GND 19 CVBS-out 1Vpp ± 0.1V into 75Ω 20 CVBS-in / Y-in 21 Shield 1.4.3 Audio/Video Front Input Connectors Audio - Cinch Input voltage : 2.2Vrms Input impedance : > 10kΩ Video - Cinch Input voltage : 1Vpp ± 3dB Input impedance : 75Ω Video - YC (Hosiden) According to IEC 933-5 Superimposed DC-level on pin 4 (load = 100kΩ) < 2.4V is detected as 4:3 aspect ratio > 3.5V is detected as 16:9 aspect ratio Input voltage Y : 1Vpp ± 3dB Input impedance Y : 75Ω Input voltage C : 300mVpp ± 3dB Input impedance C : 75Ω 1.4.4 Out 1 Component Video Cinch Y/Pb/Pr according EIO-770-I-A, EIA-770-2 Audio - Cinch Output voltage : 2.2Vrms max. Output impedance : > 10kΩ 1.4.5 Out 2 Audio - Cinch Output voltage : 2Vrms max. Output impedance : > 10kΩ Video - Cinch Output voltage : 1Vpp ± 3dB Output impedance : 75Ω Video - YC (Hosiden) According to IEC 933-5 Superimposed DC-level on pin 4 (load > 100kΩ) < 2.4V is detected as 4:3 aspect ratio > 3.5V is detected as 16:9 aspect ratio Output voltage Y : 1Vpp ± 3dB Input impedance : 75Ω Output voltage C : 300mVpp ± 3dB Input impedance : 75Ω 1.5 Digital Inputs / Outputs 1.5.1 Digital Output Digital Audio – Coaxial / Optical LCM : according IEC 60958 MPEG 1, MPEG 2, AC3 : according IEC 61937 DTS : according IEC 61937 + addendum 1.5.2 HDMI Output Type A connector (19 pins) 1.5.3 Digital Video Input (IEEE 1394) Implementation Standard according: IEEE Std 1394-1995 IEC61883 - Part1 IEC61883 - Part 2 SD-DVCR (02-01-1997) Specification of consumer use digital VCRs using 6.3mm magnetic tape – dec.1994 Mechanical connection according to Annex of IEC 61883-1
