Philips dvdr 3305 3365 service manual

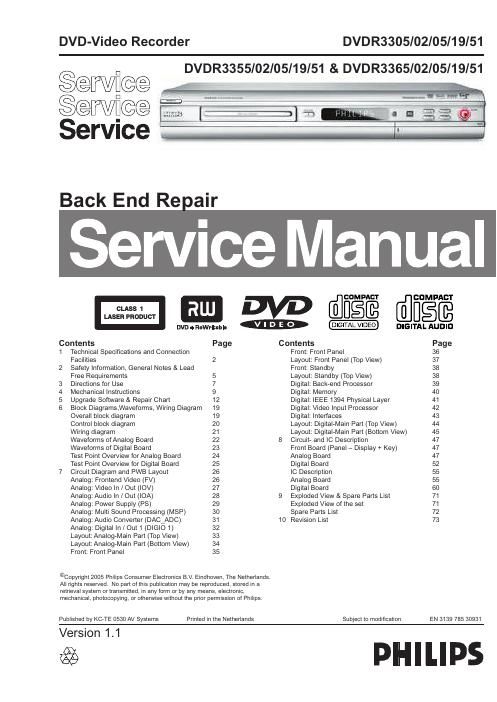

This is the 73 pages manual for philips dvdr 3305 3365 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dvdr 3305 3365 service manual (Ocr-read)
Page 1
EN 2 3139 785 3093x 1. Technical Specifi cations and Connection Facilities 1. Technical Specifi cations and Connection Facilities 1.1 PCB Locations 1.2 General: Mains voltage : 220V – 240V Mains frequency : 50 Hz Power consumption (typical) : 25 W Standby Power Consumption : < 4 W 1.3 RF Tuner Test equipment: Fluke 54200 TV Signal generator Test streams: PAL BG Philips Standard test pattern 1.3.1 System PAL B/G, PAL D/K, SECAM L/L, PAL I 1.3.2 RF - Loop Through: Frequency range : 45 MHz – 860 MHz Gain: (ANT IN - ANT OUT) : -6dB to 0dB 1.3.3 Receiver: PLL tuning with AFC for optimum reception Frequency range : 45.25 MHz – 857 MHz Sensitivity at 40dB S/N : ≥ 60dBμV at 75 Ω (video unweighted)1.3.4 Video Performance: Channel 25 / 503,25 MHz, Test pattern: PAL BG PHILIPS standard test pattern, RF Level 74dBV Measured on SCART 1 Frequency response : 0.1 – 4.00 MHz ± 3dB Group delay (0.1 MHz - 4.4 MHz) : 0 nsec ± 150 nsec 1.3.5 Audio Performance: Audio Performance Analogue - HiFi: Frequency response at SCART 1 (L+R) output : 100 Hz – 12 kHz / 0 ± 3dB S/N according to DIN 45405, 7, 1967 and PHILIPS standard test pattern video signal : ≥ 50dB, unweighted Harmonic distortion (1 kHz, ± 25 kHz deviation) : ≤ 1.5% Audio Performance NICAM: Frequency response at SCART 1 (L+R) output : 40 Hz – 15 kHz / 0 ± 3dB S/N according to DIN 45405,7,1967 and PHILIPS standard test pattern video signal : ≥ 60dB, unweighted Harmonic distortion (1kHz) : ≤ 0.5% Front boards (Behind the metal bracket) Digital Board Basic Engine Analog Board
Page 2
EN 3 3139 785 3093x1. Technical Specifi cations and Connection Facilities 1.3.6 Tuning Automatic Search Tuning Scanning time without antenna : typ. 3 min. Stop level (vision carrier) : ≥ 37dBμV Maximum tuning error of a recalled program : ± 62.5 kHz Maximum tuning error during operation : ± 100 kHz Tuning Principle Automatic B, G, I, DK and L/L detection Manual selection in STORE mode 1.4 Analogue Inputs / Outputs 1.4.1 SCART 1 (Connected to TV) Pin Signals: 1 - Audio R 1.8V RMS 2 - Audio R 3 - Audio L 1.8V RMS 4 - Audio GND 5 - Blue / GND 6 - Audio L 7 - Blue out 8 - Function switch < 2V = TV > 4.5V / < 7V = asp. Ratio 16:9 DVD > 9.5V / < 12V = asp. Ratio 4:3 DVD 9 - Green GND 10 - NC 11 - Green 0.7Vpp ± 0.1V into 75Ω (*) 12 - NC 13 - Red GND 14 - Fast switch GND 15 - Red out 0.7Vpp ± 0.1V into 75Ω (*) 16 - Fast switch RGB / CVBS < 0.4V into 75Ω = CVBS >1V / < 3V into 75Ω = RGB 17 - CVBS GND OUT 18 - CVBS GND IN 19 - CVBS out 1Vpp ± 0.1V into 75Ω (*) 20 - CVBS in 21 - Shield 1.4.2 SCART 2 (Connected to AUX) Pin Signals: 1 - Audio R 1.8V RMS 2 - Audio R 3 - Audio L 1.8V RMS 4 - Audio GND 5 - Blue GND 6 - Audio L 7 - Blue in 8 - Function switch 9 - Green GND 10 - NC 11 - Green in 12 - NC 13 - Red GND 14 - Fast switch GND 15 - Red in 16 - Fast switch RGB / CVBS 17 - CVBS GND OUT 18 - CVBS GND IN 19 - CVBS / RGB out sync 1Vpp ± 0.1V into 75Ω (*) 20 - CVBS in 21 - Shield (*) for 100% white1.4.3 Audio/Video Front Input Connectors Audio - Cinch Input voltage : 2.2Vrms Input impedance : > 10kΩ Video - Cinch Input voltage : 1Vpp ± 3dB Input impedance : 75Ω Video - YC (Hosiden) According to IEC 933-5 Superimposed DC-level on pin 4 (load > 100kΩ) < 2.4V is detected as 4:3 aspect ratio > 3.5V is detected as 16:9 aspect ratio Input voltage Y : 1Vpp ± 3dB Input impedance Y : 75Ω Input voltage C : burst 300mVpp ± 3dB Input impedance C : 75Ω 1.4.4 Audio/Video Output rear Connectors Audio - Cinch Output voltage : 2Vrms max. Output impedance : > 10kΩ Video - Cinch Output voltage : 1Vpp ± 3dB Output impedance : 75Ω Video - YC (Hosiden) According to IEC 933-5 Superimposed DC-level on pin 4 (load > 100kΩ) < 2.4V is detected as 4:3 aspect ratio > 3.5V is detected as 16:9 aspect ratio Output voltage Y : 1Vpp ± 10/-15% Output voltage C : 300mVpp ± 1/-4dB 1.5 Video Performance All outputs loaded with 75 Ω SNR measurements over full bandwidth without weighting. 1.5.1 SCART (RGB) SNR : > -65dB on all output Bandwidth : 4.8MHz ± 2dB 1.6 Audio Performance CD 1.6.1 Cinch Output Rear Output voltage 2 channel mode : 2Vrms ± 2dB Channel unbalance (1kHz) : < 1dB Crosstalk 1kHz : > 95dB Crosstalk 16Hz-20kHz : > 87dB Frequency response 20Hz-20kHz : ± 0.2dB max Signal to noise ratio : > 85dB Dynamic range 1kHz : > 83dB Distortion and noise 1kHz : > 83dB Distortion and noise 16Hz-20kHz : > 75dB Intermodulation distortion : > 70dB Mute : > 95dB Outband attenuation: : > 40dB above 30kHz
