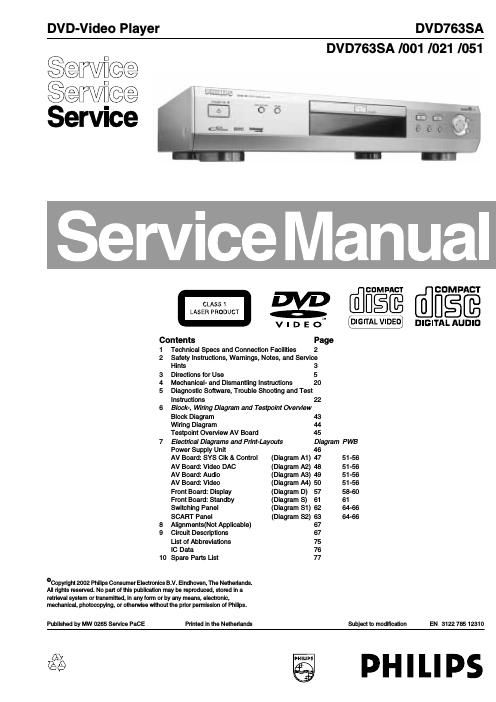

Philips dvd 763 sa service manual

Page 1

Technical Specifications and Connection Facilities EN 2 DVD763SA 1. 1. Technical Specifications and Connection Facilities PLAYBACK SYSTEM DVD Video SACD multi channel and SACD stereo Video CD & SVCD CD (CD-Recordable and CD-Rewritable) MP3 CD TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE RGB (SCART) output 0.7 Vpp into 75 ohm YUV output Y: 1Vpp into 75 ohm Pr/Cr Pb/Cb: 0.7Vpp into 75 ohm S-Video output Y: 1Vpp into 75 ohm C: 0.3Vpp into 75 ohm Video output 1 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right AUDIO FORMAT DSD Multichannel and Stereo MPEG/ Compressed Digital Dolby Digital16, 20, 24 bits DTS/PCMfs, 44.1, 48, 96 kHz MP3 96, 112, 128, 256 kbps and (ISO 9660) variable bit rate fs 32, 44.1, 48kHz Full decoding of Dolby Digital and DTS multi channel sound Analogue Stereo Sound Dolby Surround-compatible downmix from Dolby Digital multi-channel sound 3D Sound for vir tual 5.1 channel sound on 2 speakers SACD AUDIO PERFORMANCE D/A Conver ter DSD SACD fs 2.8224MHz DC - 100kHz Max. output voltage (0dB) 2V r ms Channel unbalance <0.5 dB Cut-off frequency 50kHz (Front) 40kHz (Surround, Center, Subwoofer) Signal-Noise (1kHz) 105 dB Dynamic Range (1kHz) 105 dB Crosstalk (1kHz) 105 dB Total Harmonic Distor tion (1kHz) 97 dB AUDIO PERFORMANCE (TYPICAL) DA Conver ter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz CD/Video CD fs 44.1 kHz 4 Hz - 20 kHz S-Video CD fs 48 kHz 4 Hz - 22 kHz fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) 100 dB Dynamic Range (1kHz) 100 dB Crosstalk (1kHz) 105 dB Total Harmonic Distor tion (1kHz) 97 dB MPEG MP3 MPEG Audio L3 CONNECTIONS SC ART 2x Euroconnector Y Pb/Cb Pr/Cr (480i) Cinch 3x (green, blue, red) S-Video Output Mini DIN, 4 pins Video Output 2x Cinch (yellow) Audio L+R output Cinch (white/red) Digital Output 1 coaxial, 1 optical IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, Dolby Digital, DTS 6 channel analog output Audio Front L/R Cinch (white/red) Audio Surround L/R Cinch (white/red) Audio Centre Cinch (blue) Audio Subwoofer Cinch (black) CABINET Dimensions (w x h x d) 435 x 77.5 x 303.5 mm Weight Approximately 3.1 Kg POWER SUPPLY (UNIVERSAL) Power inlet 110V-240V, 50/60Hz Power usage Approx. 23W Power usage standby < 1W * typical playing time for movie with 2 spoken languages and 3 subtitle languages Specifications subject to change without prior notice Specifications CL 26532053_048.pdf 150502
