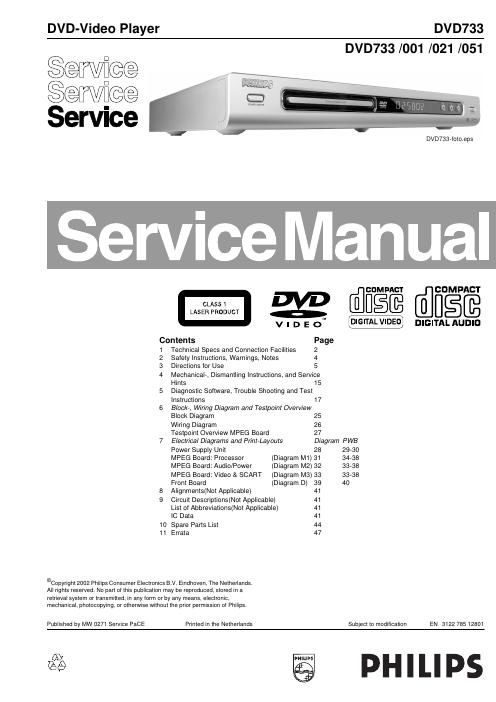

Philips dvd 733 service manual
This is the 47 pages manual for philips dvd 733 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dvd 733 service manual (Ocr-read)
Page 1
Technical Specifications and PWB Location Drawing EN 2 DVD733 /xx1 1. 1. Technical Specifications and PWB Location Drawing 1.1 Technical Specifications PLAYBACK SYSTEM DVD Video Video CD & SVCD CD (CD-Recordable and CD-Rewritable) MP3 CD VIDEO PERFORMANCE CVBS 1 Vpp into 75 ohm RGB (SCART) 0.7 Vpp into 75 ohm AUDIO FORMAT Digital MPEG/AC-3/DTS Compressed Digital PCM 16, 20, 24 bits fs, 44.1, 48, 96 kHz MPEG MP3 MPEG Audio L3 Analogue Stereo Sound AUDIO PERFORMANCE DA Conver ter 24 bits Signal-Noise (1kHz) 90 dB Dynamic Range (1kHz) 80 dB DVD fs96kHz 4Hz-44kHz DVD/SVCD fs 48 kHz 4 Hz - 22 kHz SVCD/VCD/CD fs 44.1 kHz 4 Hz - 20 kHz MPEG MP3 MPEG Audio L3 TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) CONNECTIONS SCART Euroconnector Video Output Cinch (yellow) Audio L+R output Cinch (white/red) Digital Output 1 coaxial IEC958 for CDDA / LPCM/ MPEG1 IEC1937 for MPEG2, Dolby Digital and DTS CABINET Dimensions (wxhxd) 435x50x300mm Weight Approximately 2.7 Kg Specifications subject to change without prior notice Specification s Cleaning the Cabinet ¦Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives. Cleaning Discs ¦When a disc becomes dir ty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular motion. ¦Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analogue records.Cleaning the disc lens ¦After prolonged use, dir t or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with the cleaner. Maintenance DVD733 technical specs
Page 2
Technical Specifications and PWB Location Drawing EN 3 DVD733 /xx1 1. 1.2 PWB Location Drawing Figure 1-1 PWB Location Drawing PCB LOCATION DVD733/ 001/021/051 1001 Power board 1002 MPEGboard Remote Control 1004 Front board 1003 Loader module PARTS 12NC LIST DVD733/001/021/051 1001 PSU board 3122 427 23431 1002 MPEG board 3139 248 82362 1003 Loader module 3141 018 03140 1004 Front board Remote control 3141 017 902203141 018 03251
