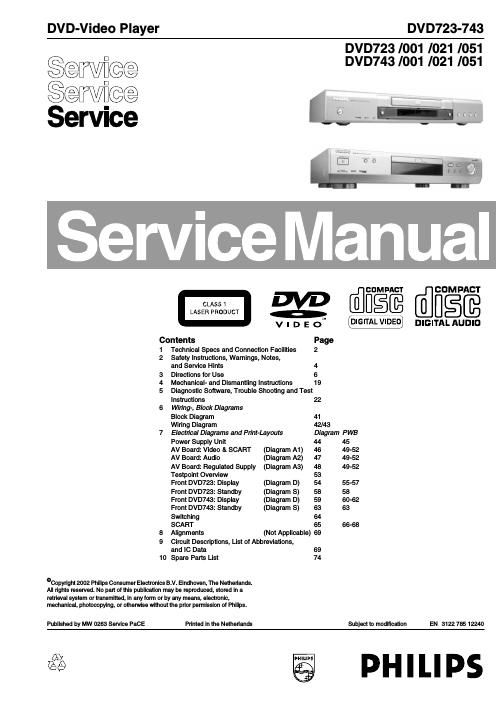

Philips dvd 723 743 service manual

Page 2

Technical Specifications and Connection Facilities EN 3 DVD 723-743 1. 1.2 DVD743/0X1 PLAYBACK SYSTEM DVD Video Video CD & SVCD CD (CD-Recordable and CD-Rewritable) MP3 CD TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE Video output 1 Vpp into 75 ohm RGB (SCART) output 0.7 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right AUDIO FORMAT Digital MPEG Compressed Digital Dolby Digital16, 20, 24 bits PCM fs, 44.1, 48, 96 kHz MPEG MP3 MPEG Audio L3 Analogue Stereo Sound Dolby Surround-compatible downmix from Dolby Digital multi-channel sound 3D Sound for vir tual 5.1 channel sound on 2 speakers AUDIO PERFORMANCE DA Conver ter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz DVD/SVCD fs 48 kHz 4 Hz - 22 kHz SVCD/VCD/CD fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) > 110 dB Dynamic Range (1kHz) > 100 dB Crosstalk (1kHz) > 105 dB Distor tion and Noise (1kHz) > 90 dB MPEG MP3 MPEG Audio L3 CONNECTIONS SC ART 2x Euroconnector S-Video Output Mini DIN, 4 pins Video Output Cinch (yellow) Audio L+R output 2x Cinch (white/red) Audio Subwoofer Cinch (black) Digital Output 1 coaxial, 1 optical IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, Dolby Digital CABINET Dimensions (w x h x d) 435 x 77.5 x 303.5 mm Weight Approximately 2.8 Kg * typical playing time for movie with 2 spoken languages and 3 subtitle languages Specifications subject to change without prior notice
