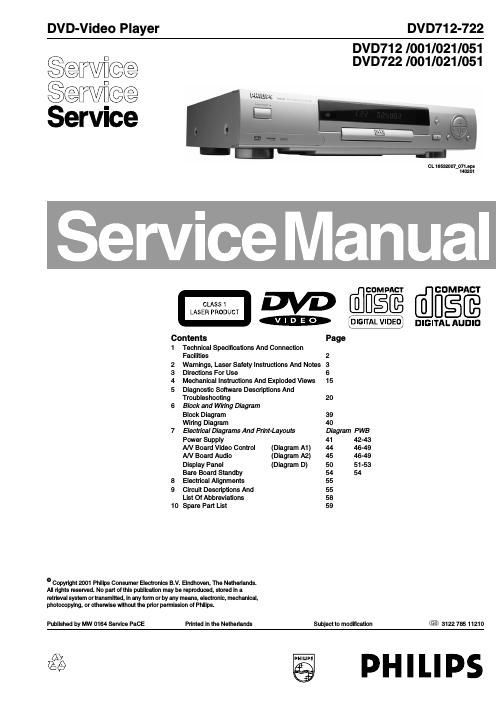

Philips dvd 712 722 service manual
This is the 61 pages manual for philips dvd 712 722 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dvd 712 722 service manual (Ocr-read)
Page 1
Technical specifications GB 2 DVD712-7221. 1. Technical specifications 22E n g l i s hSpecification PLAYBACK SYSTEM DVD Video Video CD & SVCD CD (CD-R and CD-RW) DVD+RW MP3 OPTICAL READOUT SYSTEM Laser type Semiconductor AlGaAs Numerical Aper ture 0.60 (DVD) 0.45 (VCD/CD) Wavelength 650 nm (DVD) 780 nm (VCD/CD)DVD DISC FORMAT Medium Optical Disc Diameter 12cm (8cm) Playing time One layer 2.15 h* (12cm) Dual layer 4 h* Two side 4.30 h* Single layer Two side 8 h* Dual layerVIDEO FORMAT DA Conver ter 10 bits Signal handling Components Digital Compression MPEG2 for DVD, MPEG1 for VCDTV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) DVD Horiz. Resolution 720 pixels 720 pixels Ver tical Resolution 576 lines 480 lines VCD Horiz. Resolution 352 pixels 352 pixels Ver tical Resolution 288 lines 240 lines VIDEO PERFORMANCE Video output 1 Vpp into 75 ohm S-Video output Y: 1 Vpp into 75 ohm C: 0.3 Vpp into 75 ohm RGB (SCART) output 0.7 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right AUDIO FORMAT Digital MPEG Compressed Digital DTS/Dolby Digital 16, 20, 24 bits PCM fs, 44.1, 48, 96 kHz Analog Sound Stereo Dolby Pro Logic downmix from Dolby Digital multi-channel sound 3D Sound (TruSurround) for vir tual 5.1 channel sound on 2 speakers AUDIO PERFORMANCE DA Conver ter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz fs 48 kHz 4 Hz - 22 kHz Video CD fs 44.1 kHz 4 Hz - 20 kHz CD fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) 100 dB Dynamic Range (1kHz) 97 dB Crosstalk (1kHz) 110 dB Distor tion and Noise (1kHz) 88 dB MPEG MP3 MPEG Audio L3 CONNECTIONS SCART Euroconnector S-Video Output Mini DIN, 4 pins Video Output Cinch (yellow) Audio L+R output Cinch (white/red) Subwoofer output Cinch (black) Digital Output 1 coaxial, 1 optical IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, Dolby Digital and DTS CABINET Dimensions (w x h x d) 435 x 92 x 320 mm Weight Approx. 4 Kg GENERAL FUNCTIONALITY Stop / Play / PauseFast Forward / Backward Time SearchStep Forward / Backward Slow Motion Title / Chapter / Track SelectSkip Next / Previous Repeat (Chapter / Title / All) or (Track / All) A-B Repeat Shuffle Scan New enhanced user graphical interface Perfect Still with digital multi-tap filter Zoom (xl.33, x2. x4) with picture enhancement Smar t Picture for convenient personal colour setting NTSC/PAL Conversion Screen Saver (Dim 75% after 15 min.) 3D Sound (TruSurround) Vir tual Jog Shuttle Audio and video bit rate indicator DVD FUNCTIONALITY Multi-angle Selection Audio Selection (1 out of max. 8 languages) Subtitles Selection (1 out of max. 32 languages) Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan) Parental Control and Child Lock Disc Menu suppor t (Title Menu and Root Menu) Resume (5 discs) after stop / standby Programming Titles/chapters with Favourite Selection VIDEO CD FUNCTIONALITY Playback Control for VCD 2.0 discs Child Lock Resume (5 discs) after stop / standby Programming Tracks with Favourite Selection AUDIO CD FUNCTIONALITY Time Display (Total / Track / Remaining Track Time)Full audio functionality with remote control Programming with Favourite Track Selection MP3 FUNCTIONALITY Time Display (Track) Album and Track Selection Repeat (Disc / Album / Track) * typical playing time for movie with 2 spoken languages and 3 subtitle languages. Specifications subject to change without prior notice S P E C I F I C AT I O N
Page 2
Warnings and Laser safety instructions GB 3DVD712-722 2. 2. Warnings and Laser safety instructionsSHOCK, FIRE HAZARD SERVICE TEST: CAUTION: After servicing this appliance and prior to returni ng to customer, measure the resistance between either primary AC cord connector pins (with unit NO T connected to AC mains and its Power switch ON), a nd the face or Front Panel of product and controls and cha ssis bottom, Any resistance measurement less than 1 Megohms shou ld cause unit to be repaired or corrected before AC power is applied, and verified before return to user/customer. Ref.UL Standard NO.1492. NOTE ON SAFETY: Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard. F ATTENTION Tous les IC et beaucoup dautres semi- conducteurs sont sensibles aux décharges statiques (ESD). Leur longévité pourrait être considérablementécourtée par le fait quaucune précaution nest prise a leur manipulation. Lors de réparations, sassurer de bien être relié au même potentiel que la masse de lappareil et enfiler le bracelet serti dune résistance de sécurité. Veiller a ce que les composants ainsi que les outils que lon utilise soient également a ce potentiel. D WARNUNG Alle IC und viele andere Halbleiter sind empfindlich gegen elektrostatische Entladungen (ESD). Unsorgfältige Behandlung bei der Reparatur kann die Lebensdauer drastisch vermindern. Sorgen sie dafür, das Sie im Reparaturfall über ein Pulsarmband mit Widerstand mit dem Massepotential des Gerätes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential. WAARSCHUWING Alle ICs en vele andere halfgeleiders zijn gevoelig voor elektrostatische ontladingen (ESD).Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen verminderen. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat.Houd componenten en hulpmiddelen ook opditzelfde potentiaal. AVVERTIMENTO Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD).La loro longevita potrebbe essere fortemente ridatta in caso di non osservazione della piu grande cauzione alla loro manipolazione. Durante le riparazioni occorre quindi essere collegato allo stesso potenziale che quello della massa dellapparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale. All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential. WARNING Safety regulations require that the set be restored to its original condition and that parts which are identical with those speci fied be used. Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke toestand wordt terug gebracht en dat onderdelen, id entiek aan de gespecifieerde worden toegepast. Bei jeder Reparatur sind die geltenden Sicherheitsv orschriften zu beachten. Der Originalzustand des Gerats darf nicht verandert werden. Fur Reparaturen sind Original-Ersatzteile zu verwen den. Le norme di sicurezza esigono che lapparecchio ven ga rimesso nelle condizioni originali e che siano utilizzati pezzi d i ricambiago idetici a quelli specificati. Les normes de sécurité exigent que lappareil soit remis a létat dorigine et que soient utilisées les pièces de rechange identiq ues à celles spécifiées. Pour votre sécurité, ces documents doivent être utilisés par des spécialistes agrées, seuls habilités àréparer votre appareil en panne. GB NL I D I F GB NL CL 96532065_002.eps 120799
