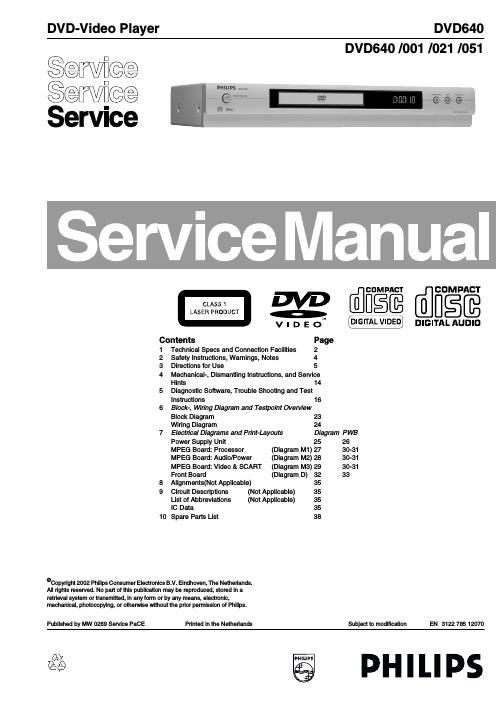

Philips dvd 640 service manual
This is the 40 pages manual for philips dvd 640 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dvd 640 service manual (Ocr-read)
Page 1
Technical Specifications and PWB Location Drawing EN 2 DVD640 /xx1 1. 1. Technical Specifications and PWB Location Drawing 1.1 Technical Specifications PLAYBACK SYSTEM DVD Video Video CD & SVCD CD (CD-Recordable and CD-Rewritable) MP3 CD VIDEO PERFORMANCE CVBS 1 Vpp into 75 ohm RGB (SCART) 0.7 Vpp into 75 ohm Black Level Shift On/Off AUDIO FORMAT Digital MPEG/AC-3/DTS Compressed Digital PCM 16, 20, 24 bits fs, 44.1, 48, 96 kHz MPEG MP3 MPEG Audio L3 Analogue Stereo Sound Full decoding of Dolby Digital multi-channel surround sound AUDIO PERFORMANCE DA Conver ter 24 bits Signal-Noise (1kHz) 90 dB Dynamic Range (1kHz) 80 dB DVD fs 96 kHz 4 Hz - 44 kHz DVD/SVCD fs 48 kHz 4 Hz - 22 kHz SVCD/VCD/CD fs 44.1 kHz 4 Hz - 20 kHz MPEG MP3 MPEG Audio L3 TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) CONNECTIONS SCART Euroconnector Video Output Cinch (yellow) Audio L+R output Cinch (white/red) Digital Output 1 coaxial IEC958 for CDDA / LPCM/ MPEG1 IEC1937 for MPEG2, Dolby Digital and DTS CABINET Dimensions (w x h x d) 435 x 235 x 71 mm Weight Approximately 2.7 Kg Specifications subject to change without prior notice Technical Specifications
Page 2
Technical Specifications and PWB Location Drawing EN 3 DVD640 /xx1 1. 1.2 PWB Location Drawing Figure 1-1 PWB Location Drawing PCB LOCATION DVD640/ 001/021/051 1001 Power board 1002 MPEG board Remote Control 1004 Front board 1003 Loader module PARTS 12NC LIST DVD615/001/021/051 1001 PSU board 3141 018 02930 1002 MPEG board 3141 018 02760 1003 Loader module 3141 018 02660 1004 Front board Remote control 3141 017 902013141 018 02750
