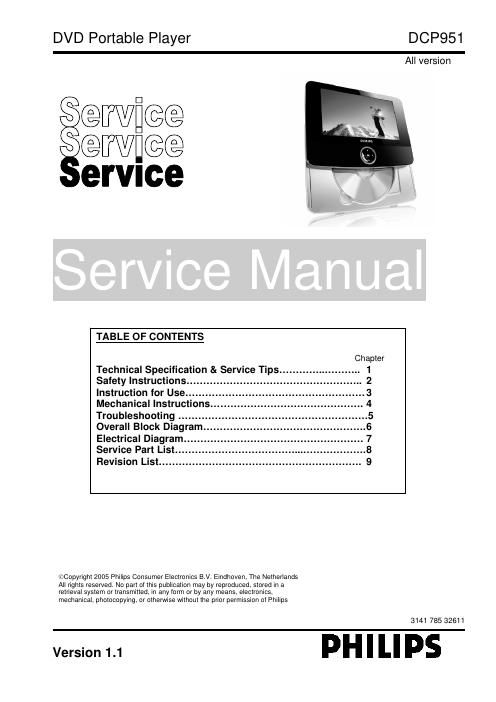

Philips dcp 951 service manual

Page 2

1.0 TECHNICAL SPECIFICATION

General

Dimensions (W x H x D): 210 x 39 x 178 mm
Bear Unit Weight: 1.1 kg +/- 5%
Power supply:
Supply voltage Input: 100~240V + / - 10%
50/60Hz 0.3A

Output: DC 9V 1A

Supply Power

consumption (AC adaptor 9W + 10%

100/240VAC)

Operating Temperature -10 ~ SOdegC
Video System NTSC
Frequency response 20-20kHz +/-1dB
THD 20-20kHz (%):

Dynamic range 1kHz >/=80dB
Signal/Noise ratio: >/=80dB
Channel Separation 1kHz >=60dB
Channel Balance 1kHz <3dB

Current consumption

Playback disc type: DVD, Picture-CD,
SVCD, Video CD, MP3-
CD, CD-FI/CD-RW,
WMA-CD, DVD-R, DVD-

FIW, DVD+FI, DVD+RW

Video Playback Format: DVD / VCD / SVCD / CD
/ JPEG / Divx

Audio Playback Format: CD/MP3, MP3-DVD,
DVD, Divx

Card slot: SD / MMC (memory up
to 1GB)

Disc Diameter 12cm

Pixel specification

Playback time

Max. 0 bright-dot & max. 3 dark-dots

Capacity--- Refer to battery 2400mAH
spec

Battery discharge cut-off 40mA
current

Factory Service Mode (FSM)

Maxbattery charge 450mA
current(continue charge) of
DCP850 & DCP750

Charging time 5 +/- 0.5H

Headphone out (headphone output load 2x16 ohm)

Maximum output power: 1.5mW

To check the software version and change
region code of your DVD Portable

1. Power ON the DVD player and open the DVD
door
2. Press the SETUP" button on remote control,
then select the Preference MENU
3. Press the remote button in the sequence as
9 -> 6 -> 5 -> 3
4. The LCD display showed the existing region

grfigianaéfisponse. :33: code. Press A (navigation up) or V
THD (0220sz 3% (naVigation down) repeatedly to select the
Left-Right Channel >/=50dB number from 0 to 6. .
Separation: 5. Refer below table for your region code setting
Left-Right Channel Balance: I USA

2 EUROPE

3 ASIA PACIFIC
Supported disc type 4 AUSTRALIA, NEW ZEALAND LATAM

5 RUSSIA, INDIA

6 CHINA

Video Playback tum-wit v.9;
Formats:

Audio Playback m .
Formats. mag m IVXI

[flfiEéM tow

Select 0 setting = Region Free (confidential)
