Philips dcp 750 service manual

Page 1

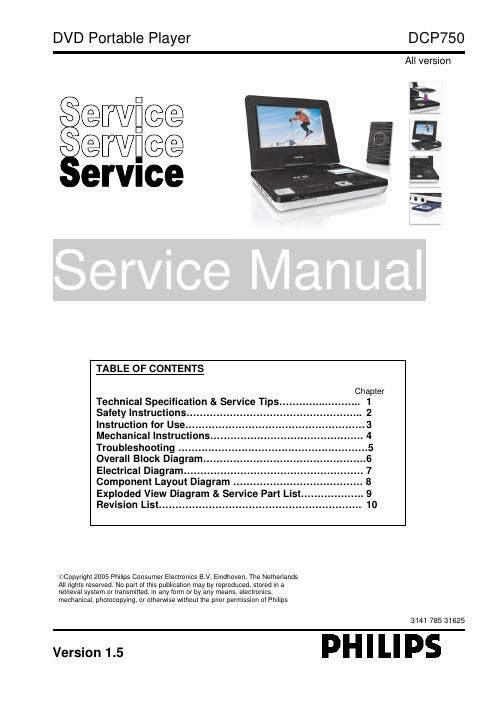

DVD Portable Player DCP750

All version

@Wflee
emcee
erVIce

TABLE OF CONTENTS

Chapter
Technical Specification & Service Tips ......................... 1

Safety Instructions ....................................... 2
Instruction for Use .................... ....3
Mechanical Instructions.... 4
Troubleshooting ...........
Overall Block Diagram.... ..........
Electrical Diagram ..................

Component Layout Diagram ....................................... 8
Exploded View Diagram & Service Part List ................... 9
Revision List ............................................................. 10

©Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronics,
mechanical, photocopying, or othen/vise without the prior permission of Philips

3141 785 31625

Version 1.5 D" I Ll ps

Page 2

1.0 TECHNICAL SPECIFICATION

General

Dimensions (W x H x D):
Weight:

Power supply:

Power consumption:
Operating temp. & FtH:
Video System

Audio System

Output voltage 1kHz:
THD 20-20kHz (%):
Dynamic range:
Signal/Noise ratio:
Frequency response (20-
20kHz):

Channel Separation 1kHz
Channel Balance 1kHz

Current consumption

210x 39 x 178mm
1.1 kg

DC 6.2-15.0V

9W

-10-50degC / 40-90%
NTSC/ PAL / AUTO

2+/-0.2V
>/=70dB
>/=70dB
+/-1 dB

>=60dB
<2dB

DVD, Picture-CD,
SVCD. Video CD, MP3-
CD, CD-FI/CD-RW,
WMA-CD, DVD-R, DVD-
FIW, DVD+R, DVD+RW,
SD/MMC Card

Playback disc type:

DVD / VCD lJPEG/
MPEG4 / DIVX3,4,5,6

Video Playback Format:

CD/MP3, MP3-DVD,
WMA

Audio Playback Format:

Disc Diameter 12cm

Pixel specification

Zero bright-dot & max. 3 dark-dots

DC-IN SUPPLY (9V)

Battery Charging Current

| 450 +/- 50mA

BATT. SUPPLY

Factory Service Mode (FSM)

Power Off

Playback with TFT on To check the software version and change
Playback Wlthoui TFT 0 region code of your DVD Portable

Playback time

Headphone out (headphone output load 2x16 ohm)

Maximum output power:
Frequency response:
SNR (A-wght):

THD (0.2-20kHz):
Left-Right Channel
Separation:

Left-Right Channel
Balance:

Supported disc type

10mW
+/-1 dB
>70dB
1%
>/=50dB

lmlLVIm VI DE 0'

....U.ao a

Video Playback
Formats:

Audio Playback
Formats:

may .

1. Power ON the DVD player and open the DVD
door

2. Press the SETUP" button on remote control,
then select the Preference MENU

3. Press the remote button in the sequence as

9 -> 6 -> 5 -> 3

4. The LCD display showed the existing region
code. Press A (navigation up) or V
(navigation down) repeatedly to select the
number from O to 6.

5. Refer below table for your region code setting

Region Code Region
I USA
2 EUROPE
3 ASIA PACIFIC
4 AUSTRALiA. NEW ZEALAND LATAM
5 RUSSiA. iNDiA
6 CHiNA

Select 0 setting = Region Free (confidential)

Procedure on how to upqrade the software of
the DVD Portable

For the best performance of your DVD Portable.
Check www.philips.com/supporf for latest
software upgrades available.

A) By CD»HOM

1. Download the PHILIPSBIN file from the Philips
support site

2. Unzip the tile and then burn it into a CD-ROM to
make a disc for upgrade
