Philips dc 212 service manual
This is the 9 pages manual for philips dc 212 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dc 212 service manual (Ocr-read)
Page 1

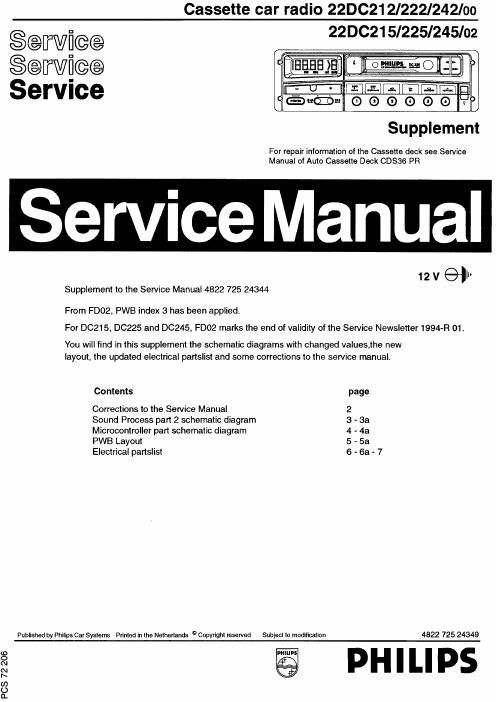

PCS 72 206
Cassette car radio 22DC212/222/242loo
Service
22 DC215/225/245/02
Service [Hagan « sum-O .0.
b
@WCZOW G®®®®v
serVice E U + fii-Ellellalmmm
Supplement
For repair information of the Cassette deck see Service
Manual of Auto Cassette Deck C0836 PR
ervice Manua
12 V @-II'.
Supplement to the Service Manual 4822 725 24344
From F002, PWB index 3 has been applied.
For DC215, 00225 and DC245, FD02 marks the end of validity of the Service Newsletter 1994-R 01.
You will find in this supplement the schematic diagrams with changed values,the new
layout, the updated electrical partslist and some corrections to the service manual.
Contents page
Corrections to the Service Manual 2
Sound Process part 2 schematic diagram 3 - 3a
Microcontroller part schematic diagram 4 - 4a
PWB Layout 5 - 5a
Electrical partslist 6 - 6a - 7
Published by Philips Car Systems Printed in the Netherlands ° Copyright reserved Subiecl to modification 4822 725 24349
PHILIPS
