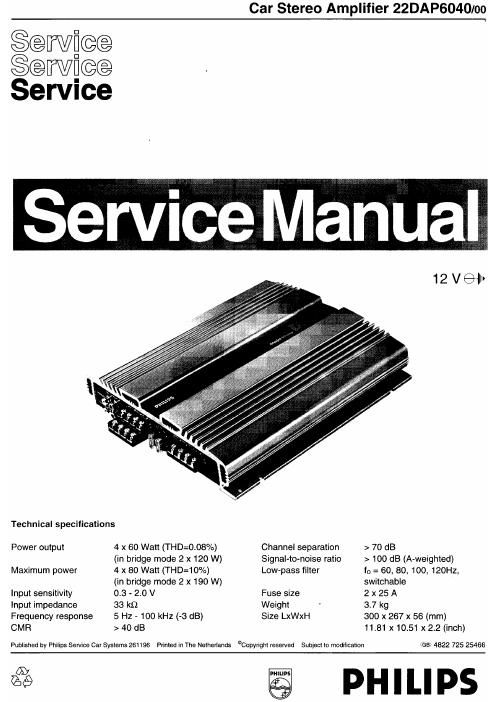

Car Stereo Amplifier 22DAP6040I00
Service
Sewgce
SerVIce
Serv eManual
12 V Gil»
Technical specifications
Power output 4 x 60 Watt (THD=0.08%) Channel separation > 70 dB
(in bridge mode 2 x 120 W) Signal-to-noise ratio > 100 dB (A-weighted)
Maximum power 4 x 80 Watt (THD=10%) Low-pass filter to = 60, 80, 100, 120Hz,
(in bridge mode 2 x 190 W) switchable
Input sensitivity 0.3 - 2.0 V Fuse size 2 x 25 A
Input impedance 33 k9 Weight ' 3.7 kg
Frequency response 5 Hz 100 kHz (-3 dB) Size LxWxH 300 x 267 x 56 (mm)
CMR > 40 dB 11.81 x 10.51 x 2.2 (inch)
Published by Philips Service Car Systems 261196 Printed in The Netherlands ®Copyright reserved Subject to modification (GB) 4822 725 25466
£39 PHILIPS
Page 2
Connections/adjustments DAP6040
1 2
RlGHY FUSE POWER GROUND REMOTE Accuzv
CHANNEL.
CHANNEL© ©
CHANNEL
3 4 9 10 11 12 13 14 15 16
1 - 4: Input RCA connectors (White=Left, Recl=Right)
5- 12. Speaker terminals
13- 16: Power supply terminals
Note: the INPUT MODE switches, FILTER MODE/FREQUENCY switches and GAIN CONTROLS are at the
opposite side of the cabinet.
2-ghannel system connection/configure; on (two 'briclged' channels):
Line output (9. g. from radio set) 1 Left channel (white plug) to RCA connector 1
- Line output 1 Right channel (red plug) to RCA connector 4
- Line 2 outputs not connected
- Speaker channel 1-2 Left: '+' to terminal 5; '-' to terminal 8
- Speaker channel 3-4 Right: '+' to terminal 9; to terminal 12
- Ch.1-2 Input mode switch: MONO L; Ch.3-4 Input mode switch: MONO R
- Ch.1-2 LPF-0FF-HPF/Ch.3-4 HPF-OFF-LPF switches: OFF (tor use with normal speakers)
- Ch.1-2 LPF-OFF-HPF/Ch.3-4 HPF-OFF-LPF switches: LPF (for use with subwooters)
- Ch.1-2 LPF-OFF-HPF/Ch.3-4 HPF-OFF-LPF switches: HPF (for use with mid/hi-range speakers)
- Ch.1-2 120-100-80-60/Ch.3-4 60-80-100-120 (Hz) switches: position dependent on speaker type
(not applicable if LPF-OFF-HPF/HPFOFF-LPF switches are in OFF position)
gi-ghannel system connectiontcontiguration (two 'single channels and one 'bridged' channel -e.g. for two separate
mid/hi-range speakers and one common subwoofer):
- Line 1 output (e.g. from radio set) Left channel (white plug) to RCA connector 1
- Line 1 output Right channel (red plug) to RCA connector 2
- Line 2 output Left channel (white plug) to RCA connector 3
- Line 2 output Right channel (red plug) to RCA connector 4
- Speaker channel 1-2 Left: +' to terminal 5; to terminal 6
- Speaker channel 1-2 Right: '+' to terminal 7; '-' to terminal 8
- Speaker channel 3-4 Left+Right (MONO): + to terminal 9; to terminal 12
- Ch.1-2 Input mode switch: ST; Ch.3-4 Input mode switch: MONO L+R
- Ch.1-2 LPF-OFF-HPF switch: HPF
- Ch.3-4 HPF-OFF-LPF switch: LPF
- Ch.1-2 120-100-80-60/Ch.3-4 60-80-100-120 (Hz) switches: position dependent on speaker type
22 DAP6040/00
PCS 82 347 GB
