Philips dac 960 service manual
This is the 28 pages manual for philips dac 960 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips dac 960 service manual (Ocr-read)
Page 1

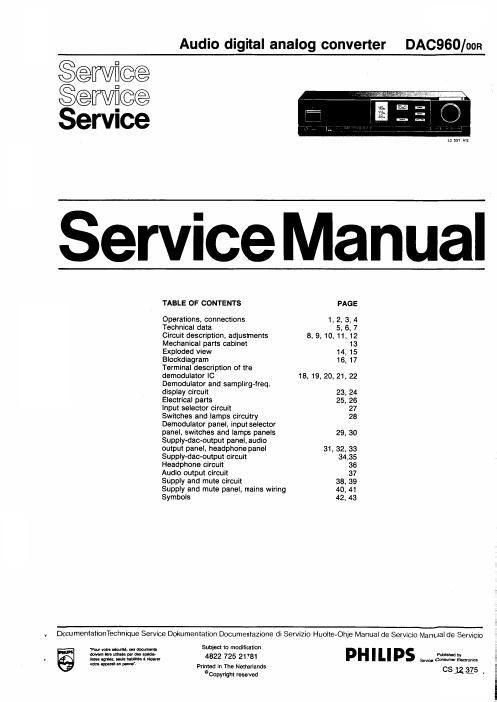

Audio digital analog converter DAC960/oon
Service
$ervgce
Servrce
u 557 AH
Service Manual
TABLE OF CONTENTS PAGE
Operations, connections 1, 2. 3, 4
Technical data 5. 6, 7
Circuit description, adjustments 8, 9, 10, 11, 12
Mechanical parts cabinet 13
Exploded view 14, 15
Blockdiagram 16, 17
Terminal description of the
demodulator IC 18, 19, 20, 21, 22
Demodulator and sampling-freq.
display circuit 23, 24
Electrical parts 25, 26
Input selector circuit 27
Switches and lamps circuitry 28
Demodulator panel, input selector
panel, switches and lamps panels 29, 30
Supply-dac-output panel, audio
output panel. headphone panel 31, 32, 33
Supply-dac~output circuit 34,35
Headphone circuit 36
Audio output circuit 37
Supply and mute circuit 38. 39
Supply and mute panel, mains wiring 40, 41
Symbols 42, 43
