Philips cem 3000 cem 3000 x service manual

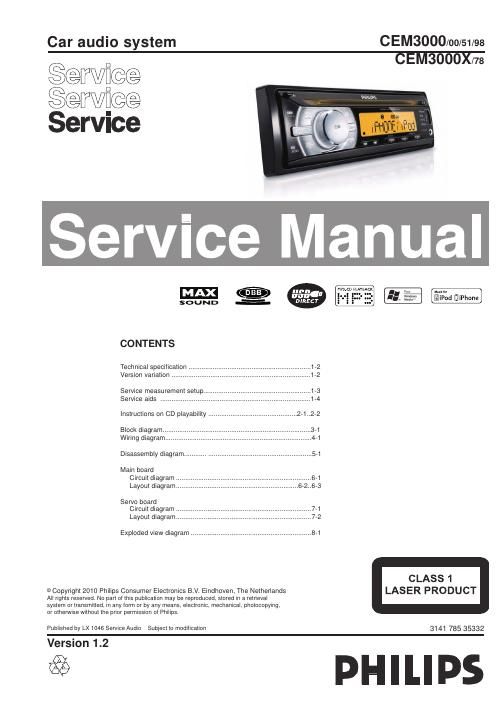

Page 1

Car audio system CEM3000/00/51/98

a (m
Service
Service ' .
SerVIce

Serv

SOUND

CONTENTS

Technical specification
Version variation ......

Service measurement setup .......................................................... 1 -3
Service aids ................................................................................ 14
Instructions on CD playability ................................................ 2-1.2-2

Block diagram.
Wiring diagram

Disassembly diagram

Main board
Circuit diagram
Layout diagram

Servo board
Circuit diagram
Layout diagram

Exploded view diagram ................................................................. 8-1

CLASS 1

©Copyright 2010 Philips Consumer Electronics B.V. Eindhoven, The Netherlands LASER PRODUCT
All rights reserved. No pan of this publication may be reproduced, stored in a retrieval
system or transmitted, in any term or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.

Published by LX 1046 Service Audio Subject to modification 3141 785 35332

Version 1.2

$9 PHILIPS

Page 2

TECHNICAL SPECIFICATION

Display

' Type: High contrast LCD. 32K color illuminations
(11 characters)

' Key illumination: White

Audio Playback

- Playback Media: CD. CD-R. CD-RW. MP3-CD.
WMA. WMA-CD

' Compression format: MP3, WMA

' Disc Playback Modes: Fast Forward/Backward.
Introscan. Nederevious Album Search. Next]
Previous Track Search

' MP3 bit rates: 3Z-320kbps and variable bit rate

- |D3 Tag support: Song title. artist. a bum

- USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause. Previous/Next, Repeat. Shuffle

TunerlReception/Transmission

- Tuner Bands: AM. FM Stereo

- Auto digital tuning

- No. of preset stations: 18(FM). 12(AM)

' Tuner Enhancements: Auto search and store

' RDS: Station Name, Station Information. Radio
Text. Program Type. News. News & Traffic. RDS
Clock Set

Dimensions

- Product dimensions (W x H x D):
188 x 58 x190 mm

- Chassis: 1 Din

Sound

- Output power (MAX): 50Wx4 channels

- Output power (RMS): 24Wx4 channels (4 ohms.
10% T.H.D.)

- Equalizer: 3-bands

- Equalizer settings: Classic. Jazz. Pop. Rock. Flat.
Optimal. Techno, User defined

- Sound Enhancement: Dynamic Bass Boost, MAX
Sound

Connectivity

- USB: USB 20 Host

- MP3-Link: For portable MP3 music playback

- Sub-woofer preamp output: With gain control
- Preamp output: 2 pairs RCA(L/R)

Security/Anti-thief
. Front panel: Detachable
- Display blackout: 10/20 sec selectable

Accessories

- Remote control: Slim remote with battery

- Quick start guide: English. Traditional Chinese.
Brazillian, Portuguese, Spanish

. User Manual: Brazilian Portuguese. Spanish

Power
- Power supply: 12V DC

VERSION VARIATION
Type /Versions: CEMSOOO
Board in used: Service policy 05 /00 I51 58 61 98
SERVO BOARD C/M M C/M
MAIN BOARD C/M M C/M
Type /Versions: CEM3000
Features eature diffrence /05 I12 /51 /58 /61 /98
RDS
VOLTAGE SELECTOR
ECO STANDBY - DARK

M -- Module Lever Repair
1 -» Used

TIPS : C -» Component Lever Repair.
