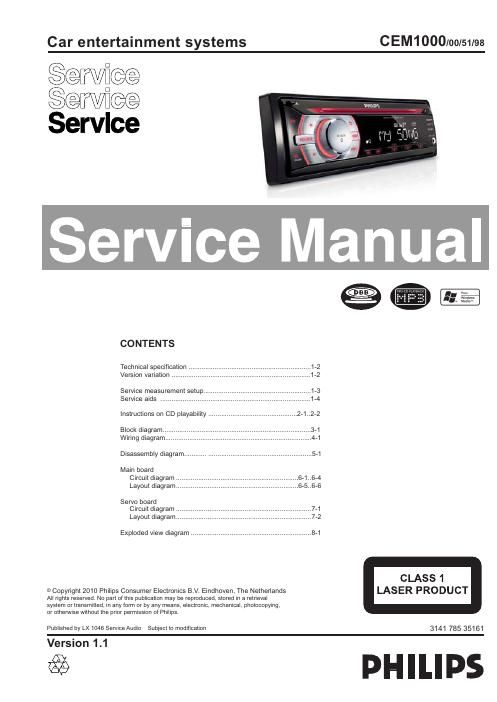

Page 1
Dis play -Type: Hig h contrast B/W LCD ( 8 chara cters) -Key illuminati on: Red Aud ioPlayback -PlaybackMedia: CD, CD-R, CD-RW, MP3-CD, WMA, WMA-C D -Compressionforma t:MP3, WM A -Disc Pla yback M odes: FastForward /Bac kward , Introscan,Nex t/PreviousAlbum Search,Nex t/ Previ ous Tr ack Se arch -ID3Tag support :Song title,artist,album -MP3bit rates : 32-320kbps and varia ble b it rate Tuner/Reception/Transmission -TunerBands:AM ,FM Ste reo -Auto digitaltuning -TunerEnhancements: Auto search andsto re -No.of pre set stations: 18 (FM), 12 (AM) -RDS: Sta tion Name ,StationInformati on,RadioText, Program T ype, New s, News & Traffic, RDS Clock Set So und -Equali zer: 2 -bands -Equali zer set tings: Cla ssic, Jaz z, Pop, Rock, Flat, Optimal, Techn o, U ser def ined -SoundEnhanceme nt:DynamicBassBoost -Ou tputpowe r(MAX):45Wx4 channel s -Ou tputpowe r(RMS): 22W x4channel s(4ohms, 10% T.H.D.) Connectivity -MP3-Link:ForportableMP3 musicplayback -Prea mpoutput:1pairRCA(L/R) Secu rity/Anti-thief -Frontpanel: De tachable&flip-do wn -Displayblackout: 10/20 secselectable Acc essories -Remote contr ol: Slim remo te wi th bat tery -User Manual: Eng lish, Brazil ian P ortuguese, Spanish, Traditi onal Chine se -Quick start guid e:Englis h,Traditional Ch inese, Bra zillian P ortuguese, Spani sh Power-Powe rsuppl y:12VDC Dimensions -Prod uctdime nsions(W xHxD): 188x58x190mm -Chassis:1Din - TECHNICAL SPECIFICATION 1 - 2 Type /Versions : Feature s Board inused : CEM1000 Service policy SERVO BOARD MAIN BOARD *TIPS : C -- Component Lever Repai r. M -- Module Lever Repair -- Used /05 /00 /5189/ 16/85/ Feature di ffrence RDS VO LTAGE SELEC TOR ECO S TANDB Y - DARK C/M C/M Type /Versions : CEM1000 /05 /12 /55 89/ 16/ 85/ VERSION VARIATION C M C/M C/M
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
